Kato
Kobelco
SK350LC-10 H&W
Excavator
35 specifications
Kato
HD1250VII
- Operating Weight
- 65,036 lb
- Max Digging Depth
- 265 in
- Max Digging Depth
- 292 in
- Net Power
- 217.3 hp
1 / 5

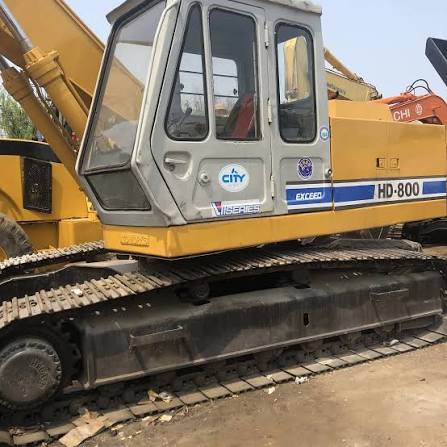

Image 1 of 5
Specifications
52 data points
Operating Specifications
| Operating Weight | 65,036 lb |
|---|---|
| Fuel Capacity | 134.8 gal |
| Hydraulic Pump Flow Capacity | 153.8 gal/min |
| Hydraulic System Fluid Capacity | 126.9 gal |
| Hydraulic System Relief Valve Pressure | 4,760 psi |
| Engine Oil Capacity | 7.7 gal |
| Cooling System Fluid Capacity | 13.8 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3.0 gal |
| Alternator Supplied Amperage | 30 A |
Engine
| Engine Model | 6D22T |
|---|---|
| Displacement | 680 in³ |
| Power Measured @ | 1,700 rpm |
| Net Power | 217.3 hp |
| Aspiration | turbocharged |
| Torque Measured @ | 1,200 rpm |
| Max Torque | 745 lb-ft |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 119 in |
| Length of Track on Ground | 146 in |
| Tail Swing Radius | 137 in |
| Width to Outside of Tracks | 103 in |
| Removal Counterweight Clearance | 44 in |
Undercarriage
| Ground Pressure | 9 psi |
|---|---|
| Track Gauge | 103 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 47 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 43,400 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 265 in |
|---|---|
| Max Reach Along Ground | 409 in |
| Max Loading Height | 281 in |
| Max Vertical Wall Digging Depth | 223 in |
| Max Cutting Height | 401 in |
Bucket
| Reference Bucket Capacity | 1.80 yd³ |
|---|---|
| Maximum Bucket Capacity | 2.50 yd³ |
| Minimum Bucket Capacity | 0.90 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 292 in |
|---|---|
| Max Vertical Wall Digging Depth | 258 in |
| Max Cutting Height | 407 in |
| Max Loading Height | 288 in |
| Max Reach Along Ground | 433 in |
| Shipping Length of Unit | 439 in |
| Shipping Height of Unit | 126 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 330 in |
|---|---|
| Max Cutting Height | 418 in |
| Max Loading Height | 298 in |
| Max Vertical Wall Digging Depth | 299 in |
| Max Reach Along Ground | 468 in |
