John Deere
Doosan
DX190W
Excavator
53 specifications
1 / 5

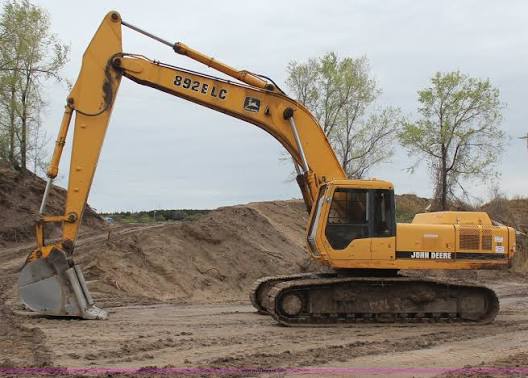

Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 65,120 lb |
|---|---|
| Fuel Capacity | 135.0 gal |
| Hydraulic Pump Flow Capacity | 144.0 gal/min |
| Hydraulic System Fluid Capacity | 82.0 gal |
| Hydraulic System Relief Valve Pressure | 4,270 psi |
| Engine Oil Capacity | 7.5 gal |
| Cooling System Fluid Capacity | 34.0 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 13.8 gal |
| Alternator Supplied Amperage | 42 A |
Engine
| Engine Model | 6076A |
|---|---|
| Displacement | 466 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 232.0 hp |
| Net Power | 220.0 hp |
| Aspiration | Turbocharged with aftercooler |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 650 lb-ft |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 120 in |
| Length of Track on Ground | 182 in |
| Tail Swing Radius | 131 in |
| Width to Outside of Tracks | 133 in |
| Removal Counterweight Clearance | 47 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 102 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 2.6 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 50 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 51,200 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 543 in |
|---|---|
| Max Reach Along Ground | 720 in |
| Max Loading Height | 531 in |
| Max Cutting Height | 600 in |
| Shipping Length of Unit | 564 in |
| Shipping Height of Unit | 132 in |
Bucket
| Reference Bucket Capacity | 0.80 yd³ |
|---|
Swing Mechanism
| Swing Speed | 12 rpm |
|---|

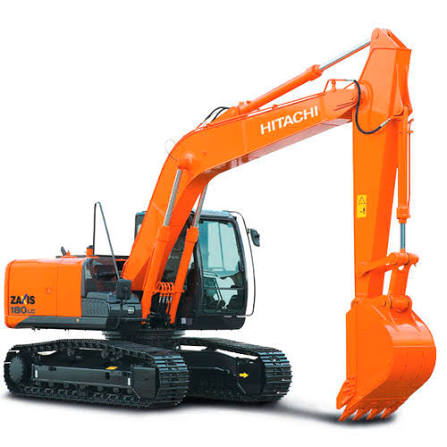

Comparable machines
