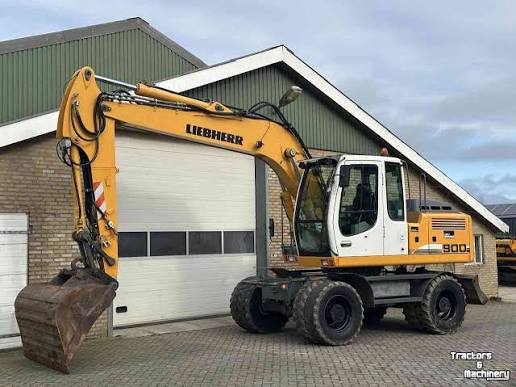

Image 1 of 5
Specifications
59 data points
Operating Specifications
| Operating Weight | 39,242 lb |
|---|---|
| Fuel Capacity | 79.3 gal |
| Hydraulic Pump Flow Capacity | 71.4 gal/min |
| Hydraulic System Fluid Capacity | 84.6 gal |
| Hydraulic System Relief Valve Pressure | 5,076 psi |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 A |
| Hydraulic Pump Type | variable displacement swashplate pump |
| Tire Size | 10.00-20 |
Engine
| Engine Model | D 924 TI-E |
|---|---|
| Displacement | 403 in³ |
| Power Measured @ | 1,800 rpm |
| Net Power | 120.0 hp |
| Number of Cylinders | 4 |
| Aspiration | turbo-charged and after-cooled reduced emissions |
Dimensions
| Ground Clearance | 1 in |
|---|---|
| Height - Top of Cab | 125 in |
| Wheelbase | 101 in |
| Overall Width | 8 in |
| Tail Swing Radius | 90 in |
| Upper Structure Clearance | 49 in |
| Overall Width - Outriggers Down | 146 in |
Transmission
| Max Travel Speed | 12.5 mph |
|---|---|
| Transmission Type | oversized two speed power shift transmission with additional creeper speed |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Reference Bucket Capacity | 0.71 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.20 yd³ |
| Minimum Bucket Capacity | 0.41 yd³ |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|---|
| Swing Torque | 31 lb-ft |
Boom/Stick Mobile Excavator Option 1
| Max Digging Depth | 217 in |
|---|---|
| Max Cutting Height | 402 in |
| Max Reach Along Ground | 355 in |
| Max Loading Height | 292 in |
| Shipping Length of Unit | 346 in |
| Shipping Height of Unit | 125 in |
| Max Vertical Wall Dig Depth | 154 in |
Boom/Stick Mobile Excavator Option 2
| Max Digging Depth | 226 in |
|---|---|
| Max Cutting Height | 408 in |
| Max Reach Along Ground | 362 in |
| Max Loading Height | 298 in |
| Shipping Height of Unit | 125 in |
| Shipping Length of Unit | 346 in |
| Max Vertical Wall Dig Depth | 162 in |
Boom/Stick Mobile Excavator Option 3
| Max Digging Depth | 233 in |
|---|---|
| Max Cutting Height | 417 in |
| Max Reach Along Ground | 371 in |
| Max Loading Height | 304 in |
| Shipping Height of Unit | 125 in |
| Shipping Length of Unit | 343 in |
| Max Vertical Wall Dig Depth | 170 in |
Boom/Stick Mobile Excavator Option 4
| Max Digging Depth | 214 in |
|---|---|
| Max Cutting Height | 355 in |
| Max Reach Along Ground | 343 in |
| Max Loading Height | 245 in |
| Shipping Height of Unit | 125 in |
| Shipping Length of Unit | 333 in |
| Max Vertical Wall Dig Depth | 146 in |
