Case

CX300C

Excavator

Operating Weight
65,036 lb
Max Digging Depth
280 in
Max Digging Depth
259 in
Net Power
206.6 hp
All excavators

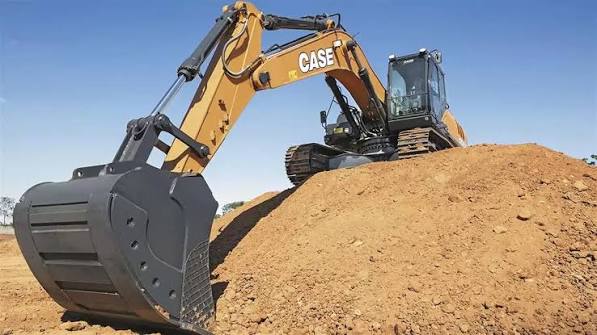

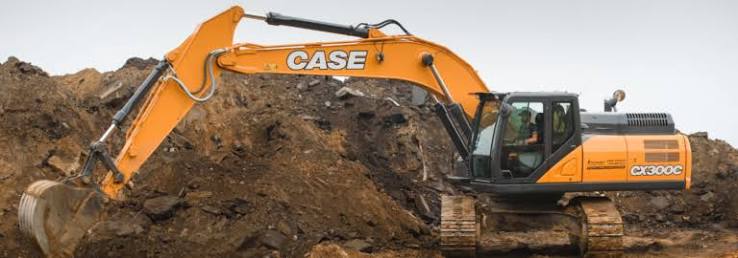

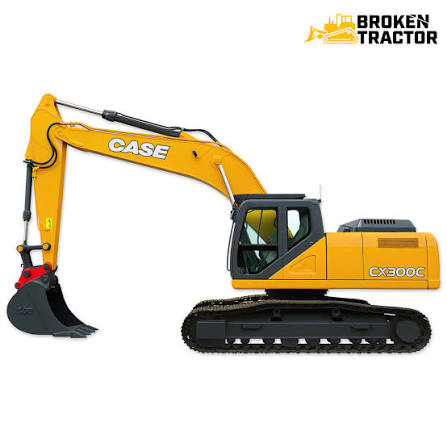

Case CX300C Excavator
1 / 5
Image 1 of 5
Image: mimico.co.nz

Specifications

46 data points

Operating Specifications

Operating Specifications specifications
Operating Weight65,036 lb
Fuel Capacity118.9 gal
Hydraulic Pump Flow Capacity128.4 gal/min
Hydraulic System Fluid Capacity79.3 gal
Cooling System Fluid Capacity8.2 gal

Engine

Engine specifications
Engine ModelAL-6HK1X
Displacement475 in³
Power Measured @1,800 rpm
Net Power206.6 hp
Torque Measured @1,500 rpm
Max Torque664 lb-ft
Engine MakeIsuzu
Stroke5 in
Bore5 in

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab128 in
Wheelbase157 in
Length of Track on Ground411 in
Tail Swing Radius125 in
Width to Outside of Tracks114 in
Cab height126 in

Undercarriage

Undercarriage specifications
Ground Pressure8 psi
Number of Track Rollers per Side9
Max Travel Speed3.4 mph
Number of Shoes per Side50
Number of Carrier Rollers per Side2
Drawbar Pull52,380 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth280 in
Max Reach Along Ground414 in
Max Loading Height280 in
Max Cutting Height397 in
Shipping Length of Unit411 in
Shipping Height of Unit128 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth259 in
Max Cutting Height391 in
Max Loading Height274 in
Max Reach Along Ground396 in
Shipping Length of Unit413 in
Shipping Height of Unit132 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth299 in
Max Cutting Height409 in
Max Loading Height292 in
Max Reach Along Ground433 in
Shipping Length of Unit413 in
Shipping Height of Unit137 in
