Caterpillar

434E

Backhoe Loader

Bucket Capacity
1.60 yd³
Max Speed
23.7 mph
Gross Power
94.0 hp
Net Power
91.0 hp
All backhoe loaders

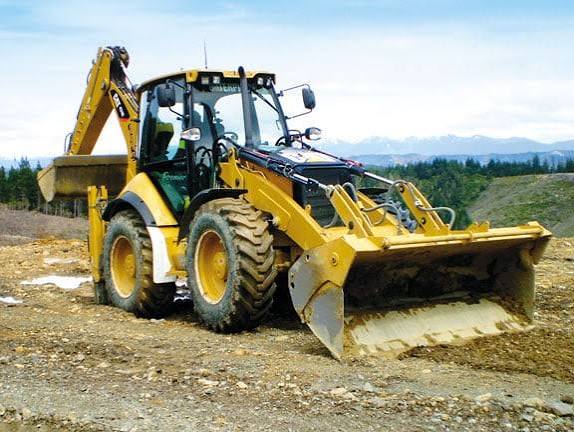

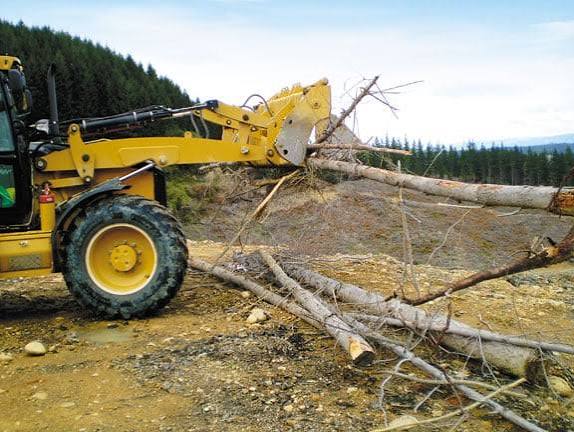

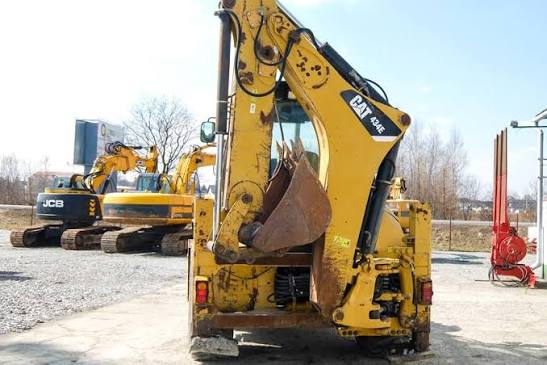

Caterpillar 434E Backhoe Loader
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight 4wd18,453 lb
Fuel Capacity49.5 gal
Hydraulic System Fluid Capacity10.1 gal
Cooling System Fluid Capacity4.3 gal
Turning Radius219 in
Transmission Fluid Capacity5.3 gal
Rear Axle Fluid Capacity4.3 gal
Front Axle Fluid Capacity3.0 gal

Engine

Engine specifications
Engine Model3054C
Displacement269 in³
Power Measured @2,200 rpm
Gross Power94.0 hp
Net Power91.0 hp
Number of Cylinders4
Net Torque Rise0

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity41.3 gal/min
Relief Valve Pressure249 psi
Pump TypeVariable-Flow Axial-Piston

Dimensions

Dimensions specifications
Wheelbase88 in
Transport Width94 in
Transport Length241 in
Height to Top of Suspended Cab110 in

Transmission

Transmission specifications
Max Speed23.7 mph
Max Speed - Reverse23.0 mph
Number of Forward Gears5
Number of Reverse Gears5
Transmission TypeCaterpillar Power-Shuttle or optional Autoshift transmission

Backhoe

Backhoe specifications
Dig Depth172 in
Reach From Swivel222 in
Dig Depth - Extended215 in
Load Height - Extended114 in
Load Height74 in

Loader

Loader specifications
Bucket Capacity1.60 yd³
Clearance at Max Dump Height96 in
Bucket Breakout Force12,140 lb
Bucket Width96 in
Dig Depth9 in
