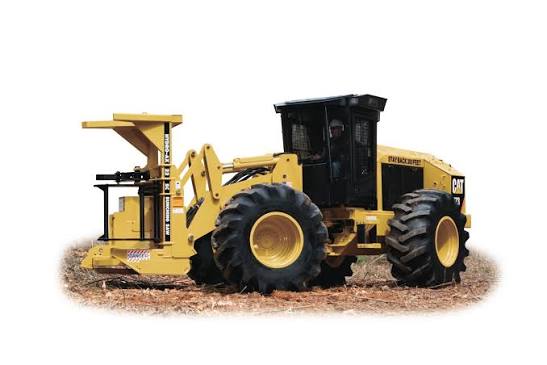

Caterpillar
Tigercat
720E
Feller Buncher
16 specifications
1 / 5
Image 1 of 5
Specifications
35 data points
Operating Specifications
| Operating Weight w/o Attachment | 27,776 lb |
|---|---|
| Max Speed | 15.0 mph |
| Fuel Capacity | 72.2 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 130 A |
| Tire Size | 28L x 26 (14PR) |
| Steering Articulation | 90 ° |
| Ground Clearance | 22 in |
| Articulation Angle - Left/Right - With 28L Tires | 90 ° |
| Travel Speed - High Range with 28L Tires | 15.0 mph |
| Travel Speed - Low Range with 28L Tires | 5.0 mph |
| Turning Radius - Outside Front Tires - 28L tires | 198 in |
Engine
| Engine Model | Cat C7 ACERT |
|---|---|
| Power Measured @ | 2,200 rpm |
| Net Power | 225.3 hp |
| Rated Power | 225.0 hp |
| Engine Power | 225.0 hp |
Weights
| Operating Weight - Without Attachment | 27,775 lb |
|---|---|
| Est. Operating Weight | 27,776 lb |
Hydraulic System
| Cylinders - Lift | 102 mm X 64 mm (4.0 in X 2.5 in ) |
|---|---|
| Cylinders - Steering | 89 mm X 51 mm (3.5 in X 2.0 in) |
| Cylinders - Tilt | 102 mm X 64 mm (4.0 in X 2.5 in ) |
| Disc Saw Pump Flow | 32.0 gal/min |
| Hydrostatic Pump Flow | 65.0 gal/min |
Dimensions
| Ground Clearance | 21 in |
|---|---|
| Height - Top of Cab | 126 in |
| Wheelbase | 114 in |
| Overall Length | 302 in |
| Overall Width | 115 in |
| Wheel Base | 114 in |
| Height - Overall | 126 in |
| Width - Overall - 28L Tires | 116 in |
| Length - With 22HC High Capacity Saw | 302 in |
Transmission
| Transmission Type | Hydrostatic transmission |
|---|
Service Refill Capacities
| Fuel Tank | 72.0 gal |
|---|
