John Deere
Tigercat
720E

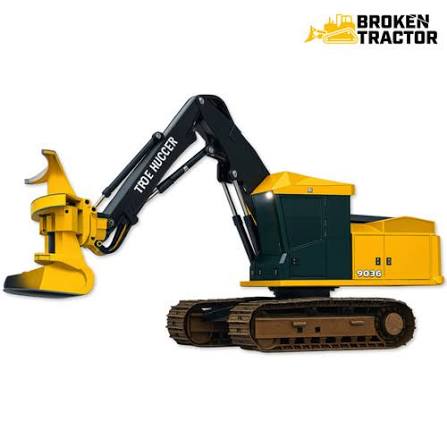

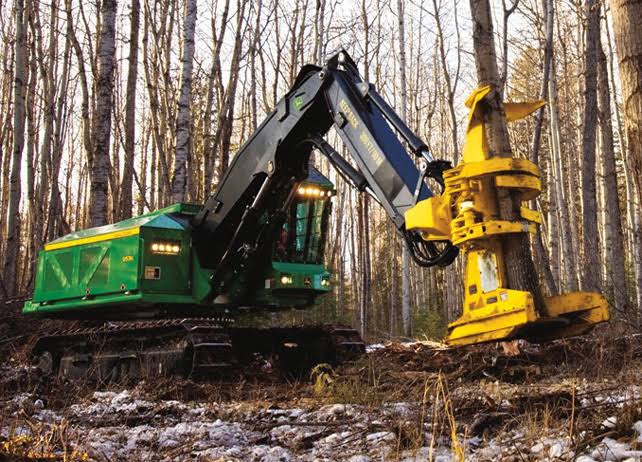

Feller Buncher
16 specifications
1 / 5
Image 1 of 5
Specifications
56 data points
Operating Specifications
| Operating Weight | 33,852 lb |
|---|---|
| Fuel Capacity | 295.0 gal |
| Operating Voltage | 24 V |
| Hydraulic System Fluid Capacity | 82.0 gal |
| Swing Speed | 6 rpm |
Engine
| Engine Model | Cat C7.1 ACERT |
|---|---|
| Displacement | 549 in³ |
| Gross Power | 330.0 hp |
| Net Power | 286.0 hp |
| Number of Cylinders | 6 |
| Net Torque | 1,027 lb-ft |
| Flywheel Power | 154.0 hp |
| Emissions | U.S. EPA Tier 4 Final/EU Stage IV/Korea Tier 4 Final or China Nonroad Stage III India Bharat III Eurasian Economic Union Stage IIIA UN ECE R96 Stage IIIA emission standards equivalent to Tier 3/Stage IIIA |
| Note (2) | Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241. |
| Net Power (Rated) - SAE J1349/ISO 9249 | 154.0 hp |
| Net Power - Rated - ISO 9249 (DIN) | 156.0 hp |
Weights
| Operating Weight(1) | 34,484 lb |
|---|
Dimensions
| Tail Swing Radius | 127 in |
|---|---|
| Digging Depth | 6 in |
| Ramp Angle | 29 ° |
| Carry Position Approach Angle | 15 ° |
| Machine Height - Top of Cab | 124 in |
| Overall Machine Length* | 252 in |
| Overall Machine Width without Bucket: Standard Tracks - 480 mm (19.7 in) Shoes | 91 in |
| Bucket Height - Carry Position | 22 in |
| Maximum Rollback - Ground/Carry Position | 43 – 50 ° |
| Note | *With general purpose bucket and extra duty teeth. |
| Clearance at Full Lift Height and 45 degrees Dump* | 106 in |
| Grading Angle | 74 ° |
| Overall Machine Height - Bucket Fully Raised | 184 in |
| Reach at Full Lift Height and 45 degrees Dump* | 47 in |
| Overall Machine Width without Bucket: Narrow Tracks - 380 mm (14.9 in) Shoes | 87 in |
| Maximum Rollback/Dump - Fully Raised | 52 – 53 ° |
| Height - Top of Stack | 110 in |
Undercarriage
| Track Gauge | 73 in |
|---|---|
| Ground Contact Area - Optional Shoe | 2,790 in³ |
| Ground Pressure(1) - Standard Shoe | 9 psi |
| Ground Contact Area - Standard Shoe | 3,410 in³ |
| Ground Pressure - Standard Shoe | 9 psi |
| Track on Ground | 91 in |
| Grouser Height - Double Grouser | 1 in |
| Track Shoe Width - Optional | 15 in |
| Track Shoe Width - Standard | 19 in |
| Ground Pressure - Optional Shoe | 11 psi |
| Ground Pressure(1) - Optional Shoe | 11 psi |
Bucket
| General Purpose Bucket Width | 98 in |
|---|---|
| Multi Purpose Bucket Width | 97 in |
| Capacity - Multi-Purpose | 2.11 yd³ |
| Capacity - Performance Series | 2.50 yd³ |
| General Purpose Bucket Capacity | 2.39 yd³ |
| Note | Buckets equipped with teeth and segments. |
| Performance Series Bucket Width | 100 in |
General Specifications
| Note | For complete machine specifications and available configurations please see your Cat dealer or look on this website. |
|---|
Service Refill Capacities
| Fuel Tank | 70.0 gal |
|---|---|
| DEF Tank(1) | 4.2 gal |
Air Conditioning System
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.1 kg of refrigerant which has a CO2 equivalent of 1.573 metric tonnes. |
|---|
