615C Series II

Scraper

Net Power
265.0 hp
Gross Power
279.0 hp
Max Speed - Forward
27.6 mph
Max Speed - Reverse
2.2 mph
All scrapers
Caterpillar 615C Series II Scraper
1 / 5

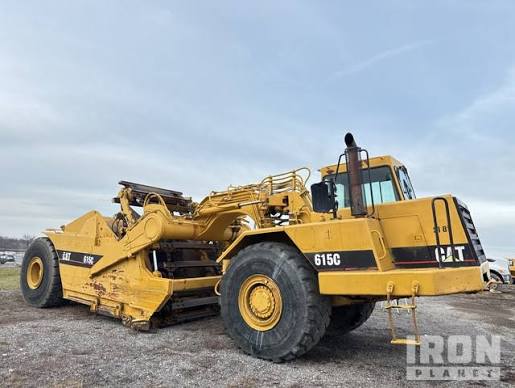

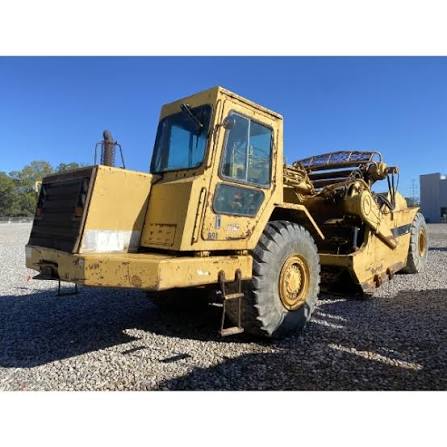

Image 1 of 5
Image: warrencat.com

Specifications

88 data points

Operating Specifications

Operating Specifications specifications
Tire Size29.5-R25
Engine Oil Fluid Capacity6.4 gal
Engine Oil Capacity6.0 gal

Engine

Engine specifications
Displacement638 in³
Net Power265.0 hp
Stroke6 in
Bore5 in
Tractor EngineCat 3306
Flywheel Power - Tractor/Scraper197 kW (265)
Gross Power - Gears 1-2279.0 hp
Net Power - Gears 1-2265.0 hp
Net Power - Gears 3-8265.0 hp

Weights

Weights specifications
Total Operating - Loaded97,250 lb
Front Axle37,250 lb
Front Axle Weight - Loaded50,010 lb
Rear Axle19,200 lb
Rear Axle - Weight - Loaded47,240 lb

Hydraulic System

Hydraulic System specifications
Bowl Cylinder Bore5 in
Bowl Cylinder Stroke23 in
Ejector Cylinder Stroke43 in
Ejector Cylinder Bore4 in
Scraper Circuit36.0 gal/min
Steering Circuit51.0 gal/min
Relief Valve - Steering Circuit1,001 psi
Compensator Settings - Elevator Circuit1,001 psi
Floor Cylinder Bore6 in
Floor Cylinder Stroke27 in

Dimensions

Dimensions specifications
Height - Top of Cab127 in
Wheelbase275 in
Overall Length457 in
Overall Height142 in
Height to Top of Suspended Cab127 in
Wheel Base275 in
Tractor Ground Clearance20 in
Width - Outside Rear Tires120 in
Height - Overall Shipping141 in
Length - Overall Machine457 in
Height - Scraper Blade Maximum20 in
Rear Axle - Rear of Machine56 in
Width - Overall Machine120 in
Width - Inside of Bowl103 in
Front of Tractor to Front Axle117 in
Width - Rear Tire Center Lines83 in

Transmission

Transmission specifications
Max Speed - Forward27.6 mph
Max Speed - Reverse2.2 mph
Number of Forward Gears6
Number of Reverse Gears1
1 Forward2.2 mph
2 Forward3.6 mph
3 Forward6.2 mph
4 Forward10.2 mph
5 Forward17.5 mph
6 Forward27.6 mph
Transmission Typeplanetary power-shift manual transmission
Top Speed - Loaded27.6 mph

Service Refill Capacities

Service Refill Capacities specifications
Cooling System17.0 gal
Fuel Tank105.0 gal
Final Drive - Each16.0 gal
Crankcase6.0 gal
Transmission9.5 gal
Differential16.0 gal
Hydraulic Reservoir42.0 gal

Standards

Standards specifications
BrakesMeets SAE J1473 & ISO 3450 stds

Steering System

Steering System specifications
Steering Angle - Left85 °
Steering Angle - Right90 °
Width - 180 degrees Turn378 in
Hydraulic Output51.0 gal/min

Bowl

Bowl specifications
Width of Cut114 in

Tractor Engine

Tractor Engine specifications
Net Power265.0 hp
Gross Power279.0 hp
Displacement638 in³
MakeCaterpillar
Aspirationturbocharged jacket-water aftercooled

Scraper Bowl

Scraper Bowl specifications
Rated Load40,800 lb
Capacity - Struck14.00 yd³
Depth of Spread - Maximum16 in
Ground Clearance - Maximum17 in
Depth of Cut - Maximum16 in
Scraper Capacity - Heaped17.00 yd³
Width - Cut - To Router Bits10 in

Elevator

Elevator specifications
Number of Flights18
Length - Flights78 in
Length - Overall147 in
Spacing of Flights16 in
Width - Flight Face7 in
Length of Flights78 in
Max Working Speed2.8 mph
Width of Flight Face7 in
