CaterpillarCaterpillar
611
Scraper
76 specifications
1 / 5

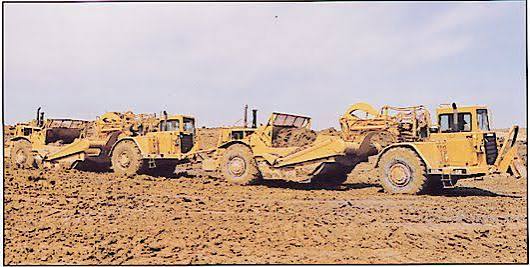

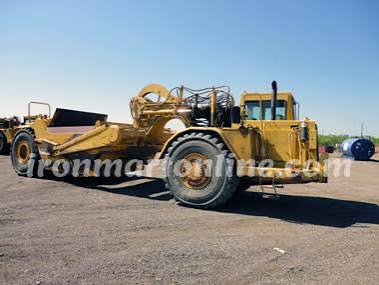

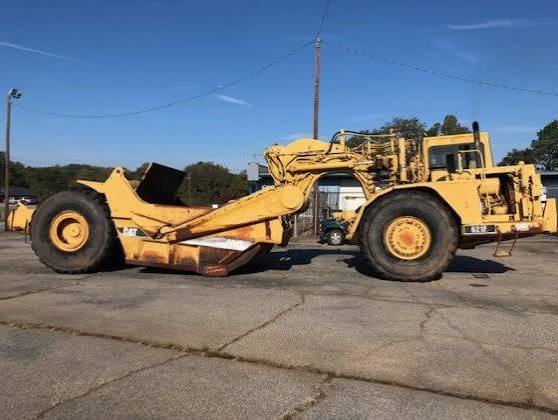

Image 1 of 5
Specifications
90 data points
Operating Specifications
| Fuel Capacity | 215.1 gal |
|---|
Engine
| Tractor Engine | 3406C |
|---|
Weights
| Operating Weight | 70,715 lb |
|---|---|
| Total Operating - empty | 70,746 lb |
Hydraulic System
| Bowl Cylinder Bore | 6 in |
|---|---|
| Bowl Cylinder Stroke | 32 in |
| Ejector Cylinder Stroke | 61 in |
| Ejector Cylinder Bore | 7 in |
| Scraper Circuit | 65.5 gal/min |
| Steering Circuit | 52.0 gal/min |
| Relief Valve - Steering Circuit | 2,250 psi |
| Cushion Hitch Circuit | 9.7 gal/min |
| Relief Valve - Implement Circuit | 2,150 psi |
| Apron Cylinder Bore | 7 in |
| Apron Cylinder Stroke | 24 in |
| Secondary Steering Circuit | 37.0 gal/min |
Dimensions
| Height - Top of Cab | 133 in |
|---|---|
| Wheelbase | 305 in |
| Overall Length | 510 in |
| Overall Width | 137 in |
| Overall Height | 146 in |
| Wheel Base | 305 in |
| Width - Outside Rear Tires | 120 in |
| Height - Overall Shipping | 132 in |
| Length - Overall Machine | 507 in |
| Height - Scraper Blade Maximum | 21 in |
| Width - Rear Tire Center Lines | 87 in |
| Width - Overall Machine | 136 in |
| Width - Inside of Bowl | 116 in |
| Rear Axle - Rear of Machine | 85 in |
| Front of Tractor to Front Axle | 125 in |
| Width - Tractor | 117 in |
| Axle to Vertical Hitch Pin | 17 in |
| Ground Clearance - Tractor | 22 in |
Transmission
| Max Speed - Forward | 31.7 mph |
|---|---|
| 1 Forward | 3.1 mph |
| 2 Forward | 5.6 mph |
| 3 Forward | 7.1 mph |
| 4 Forward | 9.6 mph |
| 5 Forward | 12.9 mph |
| 6 Forward | 17.5 mph |
| Reverse | 5.7 mph |
| 7 Forward | 23.6 mph |
| 8 Forward | 31.9 mph |
Steering System
| Steering Angle - Left | 85 ° |
|---|---|
| Steering Angle - Right | 90 ° |
| Width - 180 degrees Turn | 430 in |
| Hydraulic Output | 52.0 gal/min |
| Ground-Driven Secondary Steering System | 39.9 gal/min |
Bowl
| Heaped Capacity | 20.10 yd³ |
|---|---|
| Width of Cut | 120 in |
| Max Depth of Cut | 13 in |
| Rated Payload | 47,995 lb |
| Struck Capacity | 14.00 yd³ |
Tractor Engine
| Net Power - Gears 1-2 | 330.0 hp |
|---|---|
| Gross Power | 330.0 hp |
| Displacement | 893 in³ |
| Bore | 5 in |
| Stroke | 7 in |
| Caterpillar Net Power | 333.0 hp |
| EEC 80/1269 | 330.0 hp |
| ISO 9249 | 330.0 hp |
| SAE J1349 | 327.0 hp |
Scraper Bowl
| Rated Load | 48,000 lb |
|---|---|
| Capacity - Struck | 14.00 yd³ |
| Depth of Spread - Maximum | 70 in |
| Ground Clearance - Maximum | 21 in |
| Depth of Cut - Maximum | 13 in |
| Scraper Capacity - Heaped | 30.00 yd³ |
| Width - Cut - To Router Bits | 119 in |
| Cutting Edge Thickness | 1 in |
| Apron Closure Force | 24,075 lb |
| Apron Opening | 70 in |
| Hyd. Penetration Force - 621G | 33,840 lb |
Service Refill Capacities - Tractor
| Cooling System | 22.0 gal |
|---|---|
| Differential | 43.0 gal |
| Final Drive - Each | 5.0 gal |
| Hydraulic Reservoir | 37.0 gal |
| Transmission | 19.0 gal |
| Crankcase | 9.5 gal |
| Wheel Coolant - Each | 12.0 gal |
Weights - Standard, Tandem
| Front Axle | 48,109 lb |
|---|---|
| Front Axle Weight - Loaded | 62,915 lb |
| Rear Axle | 22,638 lb |
| Rear Axle - Weight - Loaded | 55,792 lb |
| Total Operating - Empty | 70,715 lb |
| Total Operating - Loaded | 118,707 lb |
| Scraper Shipping | 21,715 lb |
| Total Shipping | 69,658 lb |
| Tractor Shipping | 47,943 lb |
