CaterpillarCaterpillar
815K
Soil Compactor
56 specifications
1 / 5

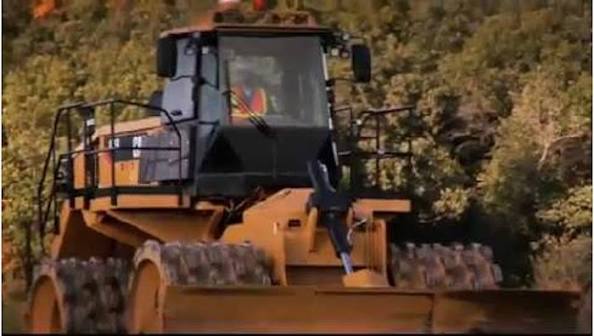

Image 1 of 5
Specifications
63 data points
Operating Specifications
| Operating Weight | 78,326 lb |
|---|---|
| Fuel Capacity | 206.6 gal |
Engine
| Engine Model | Cat C15 ACERT |
|---|---|
| Displacement | 928 in³ |
| Gross Power | 435.0 hp |
| Net Power | 405.0 hp |
| Bore | 5 in |
| Stroke | 7 in |
| Emissions | Meets U.S. EPA Tier 4 Final/EU Stage IV emission standards or meets U.S. EPA Tier 3/EU Stage IIIA equivalent emission standards |
| Low Idle Speed | 800 rpm |
| High Idle Speed | 2,300 rpm |
Hydraulic System
| Main Relief Pressure | 3,495 psi |
|---|---|
| Maximum Supply Pressure | 3,495 psi |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Wheelbase | 145 in |
| Wheel Base | 145 in |
| Length With Blade on Ground | 337 in |
| Width Over Wheels | 144 in |
| Height - Top of Hood | 125 in |
| Ground Clearance - Bumper | 32 in |
| Height - Top of Exhaust Pipe | 169 in |
| Hitch to Centerline of Front Axle | 73 in |
| Height - ROPS/Canopy | 159 in |
| Height - Top of Beacon | 173 in |
Transmission
| Transmission Type | Planetary ââ?¬â?? Powershift ââ?¬â?? ECPC |
|---|---|
| Travel Speeds - Forward - First | 3.4 mph |
| Travel Speeds - Forward - Second | 6.0 mph |
| Travel Speeds - Reverse - First | 3.9 mph |
| Travel Speeds - Reverse - Second | 6.9 mph |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Brakes & Steering
| Parking brake | Drum and Shoe Spring Applied Hydraulic Released |
|---|
Service Refill Capacities
| Fuel Tank | 206.6 gal |
|---|---|
| Engine Crankcase | 9.0 gal |
| Differential - Final Drives - Front | 26.4 gal |
| Differential - Final Drives - Rear | 29.1 gal |
| Transmission | 17.4 gal |
| Hydraulic Tank Only | 35.4 gal |
| Cooling System | 30.6 gal |
Blades
| Maximum Lift Above Ground | 39 in |
|---|---|
| Maximum Depth of Cut | 24 in |
| Blade Tilt Angle - Left - Hydraulic | 5 ° |
| Blade Tilt Angle - Right - Hydraulic | 6 ° |
| Height - Including Cutting Edge | 41 in |
| Total Tilt Adjustment | 35 in |
| Width - Over End Bits | 182 in |
| Moldboard - Length | 173 in |
Wheels
| Drum Diameter | 52 in |
|---|---|
| Drum Width | 44 in |
| Outside Diameter | 66 in |
| Tips per Wheel | 65 |
Axles
| Front | Planetary Fixed |
|---|---|
| Rear | Planetary Oscillating |
| Oscillation Angle | 8 ° |
Hydraulic System - Steering
| Steering System - Circuit | Double Acting End Mounted |
|---|---|
| Steering System - Pump | Piston Variable Displacement |
| Bore | 5 in |
| Maximum System Flow | 170 L/min @ 1800 rpm (44.9 gal/min @ 1800 rpm) |
| Steering Pressure Limited | 3,481 psi |
| Stroke | 23 in |
| Vehicle Articulation Angle | 86 ° |
Cab - Standard
| Operator Sound Level - ISO 6396 | 73 dB(A) |
|---|
Cab - Suppression
| Operator Sound Level - ISO 6396 | 72 dB(A) |
|---|
