Caterpillar
Hamm
H16I
Soil Compactor
39 specifications
1 / 5

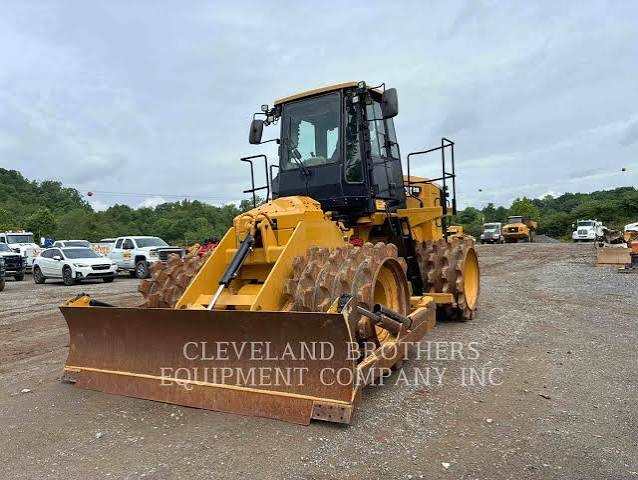

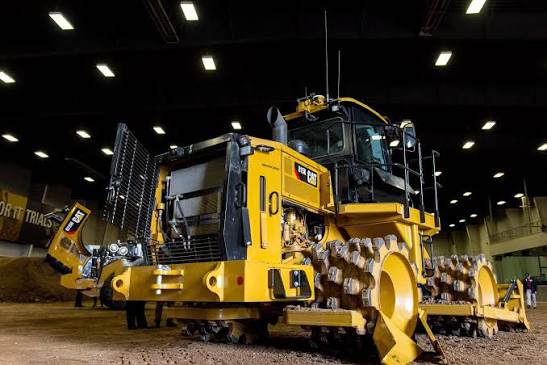

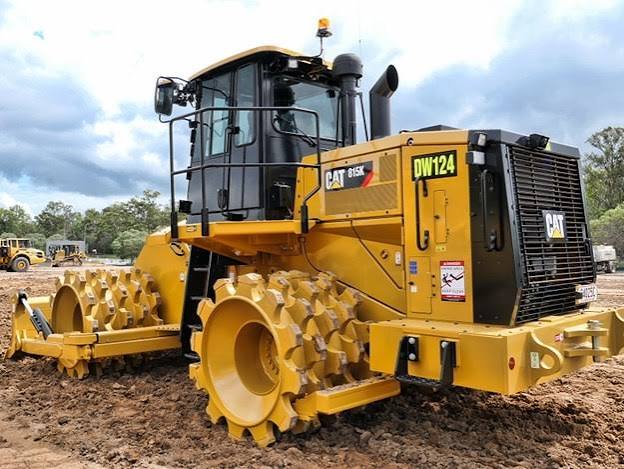

Image 1 of 5
Specifications
56 data points
Operating Specifications
| Operating Weight | 49,353 lb |
|---|
Engine
| Engine Model | Cat C7.1 ACERT: configured for two emissions options |
|---|---|
| Displacement | 428 in³ |
| Net Power | 248.0 hp |
| Bore | 4 in |
| Stroke | 5 in |
| Emissions | Meets U.S. EPA Tier 4 Final/EU Stage IV emission standards or meets U.S. EPA Tier 3/EU Stage IIIA equivalent emission standards |
| Low Idle Speed | 800 rpm |
| High Idle Speed | 2,270 rpm |
| Maximum Altitude - Without Derating | 118,111 in |
Hydraulic System
| Main Relief Pressure | 3,190 psi |
|---|---|
| Maximum Supply Pressure | 2,930 psi |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Wheel Base | 132 in |
| Length With Blade on Ground | 282 in |
| Width Over Wheels | 128 in |
| Height - Top of Hood | 102 in |
| Ground Clearance - Bumper | 26 in |
| Height - Top of Exhaust Pipe | 132 in |
| Hitch to Centerline of Front Axle | 66 in |
| Height - Top of Beacon | 156 in |
Transmission
| Transmission Type | Planetary Powershift ECPC |
|---|---|
| Travel Speeds - Forward - First | 4.2 mph |
| Travel Speeds - Forward - Second | 7.5 mph |
| Travel Speeds - Reverse - First | 4.8 mph |
| Travel Speeds - Reverse - Second | 8.5 mph |
Brakes & Steering
| Parking brake | Drum and Shoe Spring Applied Hydraulic Released |
|---|
Service Refill Capacities
| Fuel Tank | 132.1 gal |
|---|---|
| Engine Crankcase | 5.3 gal |
| Differential - Final Drives - Front | 17.2 gal |
| Differential - Final Drives - Rear | 17.2 gal |
| Transmission | 14.8 gal |
| Hydraulic Tank Only | 19.8 gal |
Blades
| Maximum Lift Above Ground | 32 in |
|---|---|
| Maximum Depth of Cut | 9 in |
| Blade Tilt Angle - Left - Hydraulic | 6 ° |
| Blade Tilt Angle - Right - Hydraulic | 5 ° |
| Height - Including Cutting Edge | 35 in |
| Total Tilt Adjustment | 26 in |
| Width - Over End Bits | 149 in |
Wheels
| Drum Diameter | 41 in |
|---|---|
| Drum Width | 40 in |
| Outside Diameter | 56 in |
| Tips per Wheel | 60 |
Axles
| Front | Planetary Fixed |
|---|---|
| Rear | Planetary Oscillating |
| Oscillation Angle | 10 ° |
Hydraulic System - Steering
| Steering System - Circuit | Closed Center Load Sensing |
|---|---|
| Steering System - Pump | Piston Variable Displacement |
| Bore | 4 in |
| Maximum System Flow | 147 L/min @ 2111 rpm (38.8 gal/min @ 2111 rpm) |
| Steering Pressure Limited | 4,003 psi |
| Stroke | 24 in |
| Vehicle Articulation Angle | 84 ° |
Cab - Standard
| Operator Sound Level - ISO 6396 | 71 dB(A) |
|---|
Cab - Suppression
| Operator Sound Level - ISO 6396 | 70 dB(A) |
|---|
