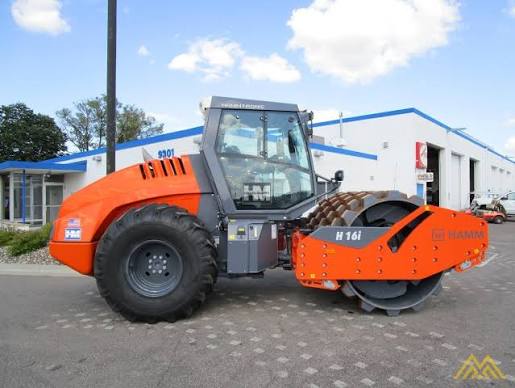

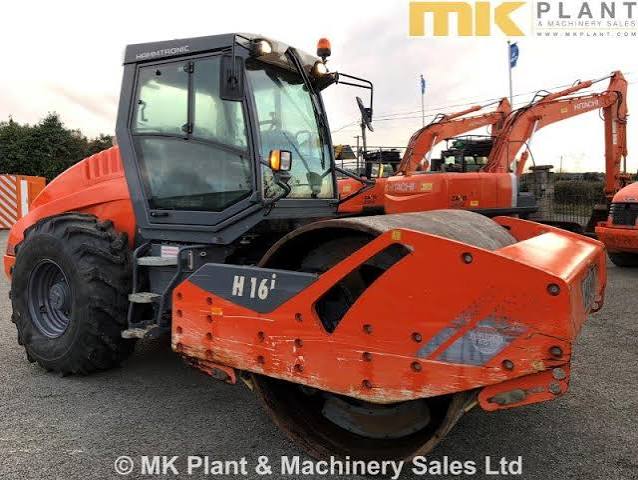

Hamm H16I Soil Compactor
1 / 5
Image 1 of 5
Image: mkplant.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating weight Cabin36,222 lb
Operating weight ROPS35,803 lb
Max Speed10.0 mph
Fuel Capacity74.0 gal
Max Weight42,858 lb
Axle load - front23,578 lb
Axle load - rear12,644 lb

Engine

Engine specifications
Engine ModelTCD 4.1 L4
Power Measured @2,300 rpm
Number of Cylinders4
Engine MakeDeutz
Emissions CertificationEU Stage IV / EPA Tier 4
Engine Power - ISO 14396154.3 hp
Engine power@SAEJ1349154.3 hp
Exhaust Gas Recirculation (EGR)DOC-DPF-SCR
Diesel Fuel Tank Capacity - Standard Tank8.5 gal

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab118 in
Wheelbase124 in
Overall Length234 in
Turning Radius - Inside152 in
Loadover height91 in
Angle of driving slope-Front53 °
Width over cab91 in
Angle of driving slope-Rear32 °

Drum

Drum specifications
Drum Width84 in
Centrifugal Force - High73,737 lb
Drum Diameter59 in
Nominal Amplitude - High0 in
Static Linear Load42 lb-ft
Vibration Frequency 128 vpm
Drum thickness2 in
Drum Typesmooth
Centrifugal Force - Low58,226 lb
Nominal Amplitude - Low0 in
Vibration Frequency 231 vpm

Steering System

Steering System specifications
Steering MethodArticulated steering
Oscillating angle10 °

Speeds

Speeds specifications
Size of tyres, rearAW 23.1-26 12 PR
