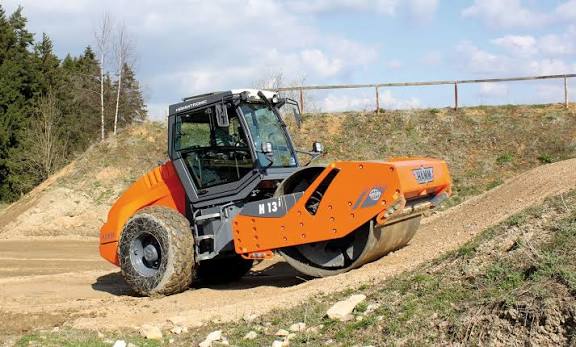

Hamm H13I Soil Compactor
1 / 5
Image 1 of 5
Image: machine.market

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating weight Cabin28,352 lb
Operating weight ROPS27,778 lb
Max Speed12.0 mph
Fuel Capacity74.0 gal
Max Weight34,987 lb
Axle load - front15,686 lb
Axle load - rear12,666 lb

Engine

Engine specifications
Engine ModelTCD 3.6 L4
Power Measured @2,300 rpm
Number of Cylinders4
Engine MakeDeutz
Emissions CertificationEU Stage IIIB / EPA Tier 4
Engine Power - ISO 14396154.3 hp
Engine power@SAEJ1349154.3 hp
Exhaust Gas Recirculation (EGR)DOC-SCR
Diesel Fuel Tank Capacity - Standard Tank8.5 gal

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab118 in
Wheelbase124 in
Overall Length230 in
Turning Radius - Inside152 in
Loadover height91 in
Angle of driving slope-Front53 °
Width over cab90 in
Angle of driving slope-Rear32 °

Drum

Drum specifications
Drum Width84 in
Centrifugal Force - High55,978 lb
Drum Diameter59 in
Nominal Amplitude - High0 in
Static Linear Load16 lb-ft
Vibration Frequency 130 vpm
Drum thickness1 in
Drum Typesmooth
Centrifugal Force - Low37,318 lb
Nominal Amplitude - Low0 in
Vibration Frequency 236 vpm

Steering System

Steering System specifications
Steering MethodArticulated steering
Oscillating angle10 °

Speeds

Speeds specifications
Size of tyres, rearAW 23.1-26 12 PR
