Caterpillar
Wacker Neuson
WL18

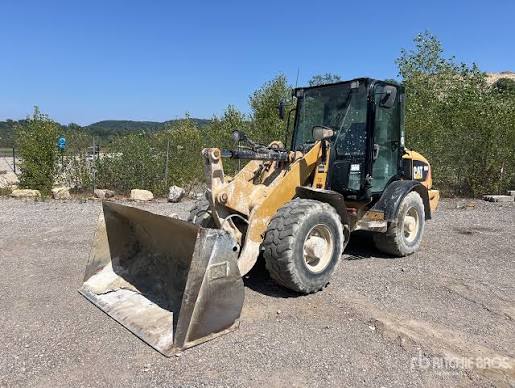

Wheel Loader
22 specifications
1 / 5
Image 1 of 5
Specifications
49 data points
Operating Specifications
| Operating Weight | 4,553 lb |
|---|---|
| Fuel Capacity | 13.7 gal |
| Tire Size | 405/70 R18 |
| Hydraulic System Fluid Capacity | 25.0 gal |
| Engine Oil Fluid Capacity | 2.7 gal |
| Cooling System Fluid Capacity | 6.3 gal |
| Rated Bucket Capacity | 1.20 yd³ |
| Breakout Force | 9,442 lb |
| Full Turn Static Tipping Load - Bucket | 6,967 lb |
| Rack Back - Transport Position | 52 ° |
| Straight Tipping Load - Bucket | 8,785 lb |
| Rated Operating Load at Full Turn - Bucket | 3,483 lb |
| Hydraulic Lift Capacity | 7,194 lb |
| Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 500 mm (20 in) Load Center, Transport 100 mm (4 in) Above Ground) | 5,997 lb |
Engine
| Engine Model | C3.3B DIT |
|---|---|
| Gross Power | 74.0 hp |
| Net Power | 69.0 hp |
| Stroke | 5 in |
| Bore | 4 in |
| Maximum Gross Power - ISO 14396 | 73.0 hp |
| Maximum Gross Power - SAE J1995 | 74.0 hp |
| Maximum Net Power - SAE J1349 | 68.0 hp |
| Maximum Net Power - ISO 9249 | 69.0 hp |
| Rated Net Power - 2,500 rpm - SAE J1349 | 68.0 hp |
Weights
| Operating Weight | 12,412 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 22.0 gal/min |
|---|---|
| Raise Time | 5.0 s |
| Lower Time | 4.0 s |
| Dump Time | 2.0 s |
| Relief Valve Setting | 3,400 psi |
| Pump Type | PISTON |
| Main Relief | 3,400 psi |
Dimensions
| Ground Clearance | 12 in |
|---|---|
| Wheelbase | 86 in |
| Reach at Max Lift and Dump | 50 in |
| Length with Bucket on Ground | 221 in |
| Hinge Pin - Max Height | 127 in |
| Wheel Base | 86 in |
Transmission
| Max Speed - Forward | 21.7 mph |
|---|---|
| Number of Forward Gears | 3 |
| Travel Speed 1 | 4.3 mph |
| Travel Speed 2 | 12.4 mph |
Cab & Operator
| ROPS | SAE J1040 MAY94 ISO 3471-1994 |
|---|---|
| FOPS | SAE J/ISO 3449 APR98 Level II ISO 3449 1992 Level II |
Bucket
| Bucket Capacities | 1.60 yd³ |
|---|
Service Refill Capacities
| Cooling System | 6.3 gal |
|---|---|
| Fuel Tank | 13.7 gal |
| Engine Oil | 2.6 gal |
| Hydraulic System | 25.0 gal |
