Caterpillar

931

Crawler Loader

Operating Weight
15,212 lb
Bucket Capacity - heaped
1.10 yd³
Bucket Capacity - struck
0.90 yd³
Net Power
62.0 hp
All crawler loaders

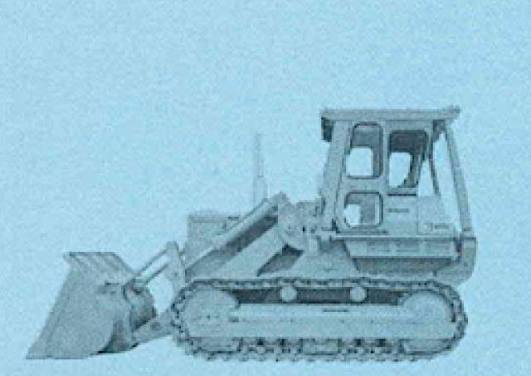

Caterpillar 931 Crawler Loader
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,212 lb
Bucket Capacity - heaped1.10 yd³
Bucket Capacity - struck0.90 yd³
Max Speed6.9 mph
Fuel Capacity30.3 gal
Static Tipping Load8,896 lb
Breakout Force Bucket10,700 lb
Hydraulic System Fluid Capacity13.0 gal

Engine

Engine specifications
Engine Model3204
Displacement317 in³
Net Power62.0 hp

Hydraulic System

Hydraulic System specifications
Lower Time3.5 s
Raise Time6.1 s
Dump Time1.3 s

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab108 in
Width to Outside of Tracks71 in
Clearance at Full Height and Dump97 in
Reach at Dump Height31 in

Undercarriage

Undercarriage specifications
Length of Track on Ground72 in
Track Gauge56 in
Track Shoe Width12 in
Number of Track Rollers per Side5
Ground Contact Area1,736 in³
