CaterpillarCaterpillar
931C Series II LGP
Crawler Loader
38 specifications
Caterpillar
933C LGP
- Operating Weight
- 18,706 lb
- Bucket Capacity - heaped
- 1.29 yd³
- Bucket Capacity - struck
- 1.10 yd³
- Net Power
- 70.0 hp
1 / 5

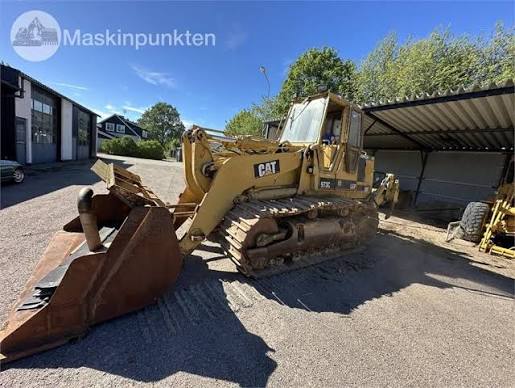

Image 1 of 5
Specifications
38 data points
Operating Specifications
| Operating Weight | 18,706 lb |
|---|---|
| Bucket Capacity - heaped | 1.29 yd³ |
| Bucket Capacity - struck | 1.10 yd³ |
| Max Speed | 5.6 mph |
| Fuel Capacity | 41.5 gal |
| Static Tipping Load | 12,412 lb |
| Breakout Force Bucket | 18,790 lb |
| Cooling System Fluid Capacity | 5.6 gal |
| Hydraulic System Fluid Capacity | 15.1 gal |
| Final Drive Fluid Capacity - each | 5.5 gal |
| Engine Oil Capacity | 3.5 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 55 A |
Engine
| Engine Model | 3046 |
|---|---|
| Displacement | 305 in³ |
| Power Measured @ | 2,400 rpm |
| Net Power | 70.0 hp |
| Number of Cylinders | 6 |
Hydraulic System
| Pump Flow Capacity | 27.3 gal/min |
|---|---|
| Lower Time | 2.0 s |
| Raise Time | 5.8 s |
| Relief Valve Pressure | 2,875 psi |
| Dump Time | 1.7 s |
| Pump Type | open centered parallel system |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 109 in |
| Width to Outside of Tracks | 91 in |
| Length with Bucket on Ground | 170 in |
| Reach at Dump Height | 32 in |
| Clearance at Full Height and Dump | 108 in |
| Length to Front of Track | 117 in |
Undercarriage
| Length of Track on Ground | 81 in |
|---|---|
| Track Gauge | 66 in |
| Track Shoe Width | 25 in |
| Ground Pressure | 5 psi |
| Number of Track Rollers per Side | 6 |
| Ground Contact Area | 4,030 in³ |
| Number of Shoes per Side | 39 |
