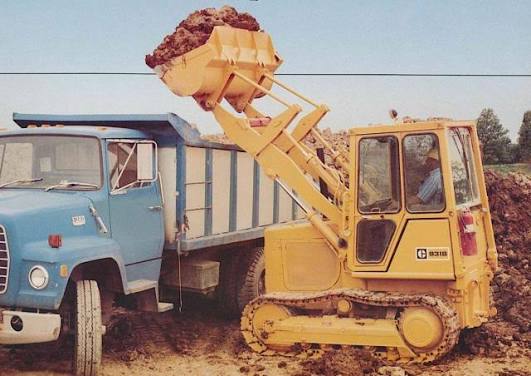

Caterpillar
931B
- Operating Weight
- 15,331 lb
- Bucket Capacity - heaped
- 1.10 yd³
- Bucket Capacity - struck
- 0.90 yd³
- Net Power
- 64.4 hp
1 / 5
Image 1 of 5
Specifications
38 data points
Operating Specifications
| Operating Weight | 15,331 lb |
|---|---|
| Bucket Capacity - heaped | 1.10 yd³ |
| Bucket Capacity - struck | 0.90 yd³ |
| Max Speed | 7.1 mph |
| Fuel Capacity | 30.7 gal |
| Static Tipping Load | 9,083 lb |
| Breakout Force Bucket | 11,560 lb |
| Cooling System Fluid Capacity | 5.3 gal |
| Hydraulic System Fluid Capacity | 20.1 gal |
| Final Drive Fluid Capacity - each | 2.2 gal |
| Engine Oil Capacity | 3.2 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 A |
Engine
| Engine Model | 3204 |
|---|---|
| Displacement | 317 in³ |
| Power Measured @ | 2,400 rpm |
| Net Power | 64.4 hp |
| Number of Cylinders | 4 |
Hydraulic System
| Pump Flow Capacity | 23.0 gal/min |
|---|---|
| Lower Time | 3.5 s |
| Raise Time | 6.1 s |
| Relief Valve Pressure | 2,500 psi |
| Dump Time | 1.4 s |
| Pump Type | Single-section gear pump |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 106 in |
| Width to Outside of Tracks | 71 in |
| Length with Bucket on Ground | 154 in |
| Reach at Dump Height | 31 in |
| Clearance at Full Height and Dump | 97 in |
| Length to Front of Track | 108 in |
Undercarriage
| Length of Track on Ground | 72 in |
|---|---|
| Track Gauge | 56 in |
| Track Shoe Width | 12 in |
| Ground Pressure | 9 psi |
| Number of Track Rollers per Side | 5 |
| Ground Contact Area | 1,721 in³ |
| Number of Shoes per Side | 36 |

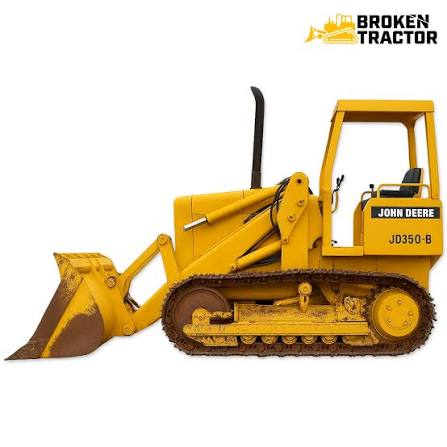

Comparable machines
