Caterpillar

950H

Wheel Loader

Operating Weight
40,435 lb
Bucket Capacity - heaped
4.00 yd³
Gross Power
217.0 hp
Net Power
197.0 hp
All wheel loaders

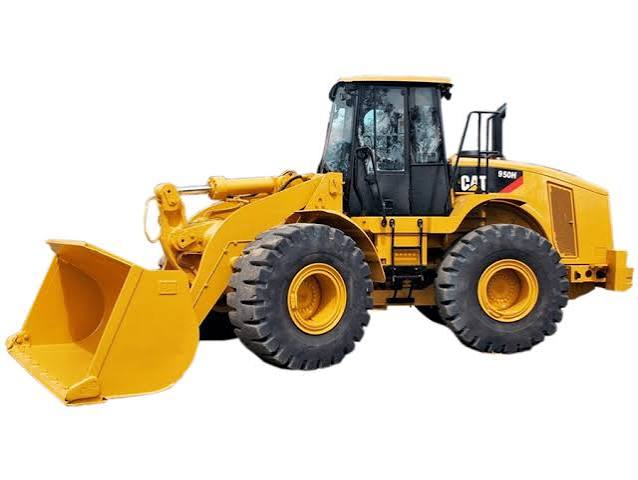

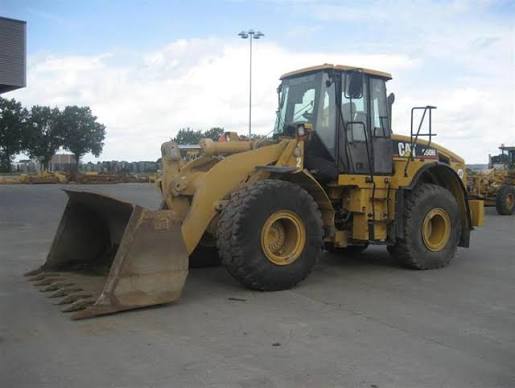

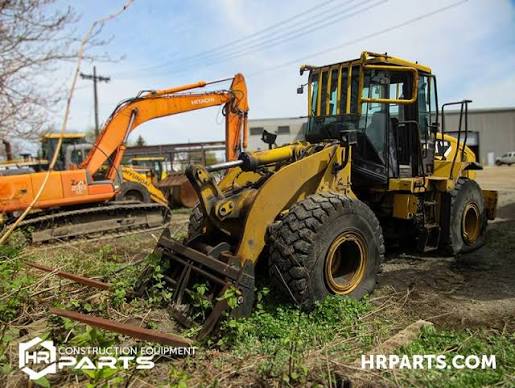

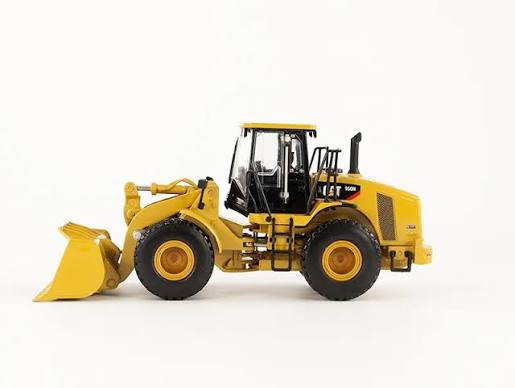

Caterpillar 950H Wheel Loader
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

96 data points

Operating Specifications

Operating Specifications specifications
Operating Weight40,435 lb
Fuel Capacity83.0 gal
Tire Size23.5R25
Hydraulic System Fluid Capacity29.0 gal
Static Tipping Weight27,483 lb
Operating Voltage24 V
Turning Radius276 in
Engine Oil Fluid Capacity7.9 gal
Rear Axle Oscillation26 °
Alternator Supplied Amperage80 A
Front Axle/Diff Fluid Capacity9.5 gal
Rear Axle/Diff Fluid Capacity9.5 gal
Cooling System Fluid Capacity11.0 gal
Transmission Fluid Capacity9.0 gal
Rated Bucket Capacity4.50 yd³
Breakout Force37,125 lb
Dump Clearance115 in

Engine

Engine specifications
Engine ModelCat C7 ACERT
Displacement439 in³
Power Measured @1,800 rpm
Gross Power217.0 hp
Net Power197.0 hp
Number of Cylinders6
MakeCat
Bore4 in
Stroke5 in
Gross Power - SAE J1995217.0 hp
Net Power - ISO 9249197.0 hp
Net Power - SAE J1349195.0 hp
Flywheel Power197.0 hp
Net Power - 80/1269/EEC197.0 hp
Peak Torque - 1,400 rpm - Net669 lb-ft

Weights

Weights specifications
Operating Weight40,435 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity71.0 gal/min
Raise Time6.2 s
Lower Time2.5 s
Dump Time1.3 s
Relief Valve Setting1,000 psi
Pump TypePiston
Hydraulic Cycle Time - Dump1.3 s
Hydraulic Cycle Time - Total10.0 s
Hydraulic Cycle Time - Lower, Empty, Float Down2.5 s
Hydraulic Cycle Time - Raise6.2 s
Steering System - Pump TypePiston
Bucket/Work Tool System - Pump Output71.0 gal/min

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab137 in
Wheelbase132 in
Width Over Tires110 in
Reach at Max Lift and Dump48 in
Length with Bucket on Ground315 in
Hinge Pin - Max Height157 in
Height - Top of ROPS/FOPS135 in
Wheel Base132 in
Height - Top of Hood97 in
Height - Top of Exhaust133 in
Centerline of Rear Axle to Hitch66 in
Dump Angle at Maximum Lift48 °
Centerline Rear Axle to Edge of Counterweight78 in
B-Pin Height - Standard157 in

Transmission

Transmission specifications
Max Speed - Forward23.0 mph
Max Speed - Reverse24.9 mph
Transmission TypePowershift
Number of Forward Gears4
Number of Reverse Gears4
Forward - 14.3 mph
Reverse - 14.7 mph
Forward - 27.9 mph
Reverse - 28.6 mph
Forward - 313.9 mph
Reverse - 315.2 mph
Forward - 423.0 mph
Reverse - 424.9 mph

Brakes & Steering

Brakes & Steering specifications
BrakesMeets required standards.

Cab & Operator

Cab & Operator specifications
ROPS/FOPSMeets SAE and ISO standards.

Tires & Wheels

Tires & Wheels specifications
TiresChoose from a variety of tires to match your application.

Bucket

Bucket specifications
Bucket Capacity - heaped4.00 yd³
Bucket Capacity - struck3.51 yd³
Dump Clearance at Max Raise115 in
Breakout Force37,125 lb
Bucket Width115 in
Bucket Capacities4.50 yd³
Maximum Bucket Capacity4.50 yd³
Reference Bucket Capacity4.00 yd³
Breakout Force - Reference Bucket37,125 lb
Type - Reference bucketGeneral purpose

Service Refill Capacities

Service Refill Capacities specifications
Cooling System11.0 gal
Transmission9.0 gal
Crankcase7.9 gal
Differential - Final Drives - Front9.5 gal
Differential - Final Drives - Rear9.5 gal
Hydraulic Tank29.0 gal
Fuel Tank - Standard83.0 gal

Axles

Axles specifications
FrontFixed front
RearOscillating +/- 13?
Maximum Single-Wheel Rise and Fall19 in
