Caterpillar
953 LGP
- Operating Weight
- 31,663 lb
- Bucket Capacity - heaped
- 2.00 yd³
- Bucket Capacity - struck
- 1.70 yd³
- Net Power
- 110.0 hp
1 / 5

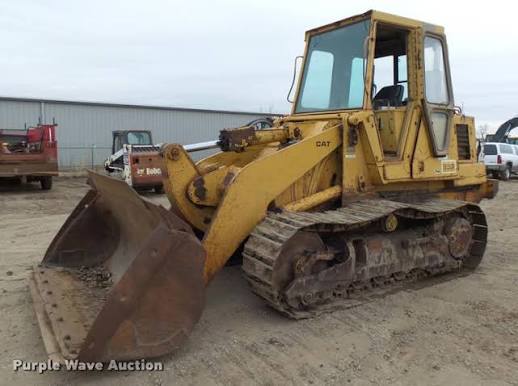

Image 1 of 5
Specifications
26 data points
Operating Specifications
| Operating Weight | 31,663 lb |
|---|---|
| Bucket Capacity - heaped | 2.00 yd³ |
| Bucket Capacity - struck | 1.70 yd³ |
| Max Speed | 6.5 mph |
| Fuel Capacity | 50.8 gal |
| Static Tipping Load | 19,288 lb |
| Breakout Force Bucket | 26,395 lb |
| Hydraulic System Fluid Capacity | 15.4 gal |
Engine
| Engine Model | 3204 |
|---|---|
| Displacement | 317 in³ |
| Net Power | 110.0 hp |
Hydraulic System
| Lower Time | 3.0 s |
|---|---|
| Raise Time | 7.4 s |
| Dump Time | 1.5 s |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 121 in |
| Width to Outside of Tracks | 86 in |
| Length with Bucket on Ground | 231 in |
| Reach at Dump Height | 41 in |
| Clearance at Full Height and Dump | 114 in |
Undercarriage
| Length of Track on Ground | 91 in |
|---|---|
| Track Gauge | 71 in |
| Track Shoe Width | 20 in |
| Ground Pressure | 9 psi |
| Number of Track Rollers per Side | 6 |
| Ground Contact Area | 3,565 in³ |
