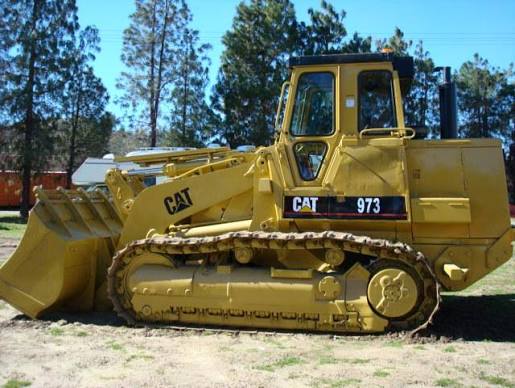

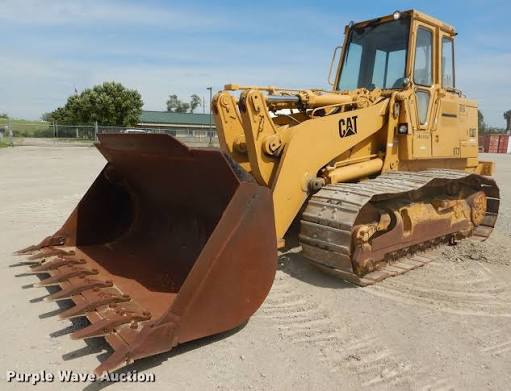

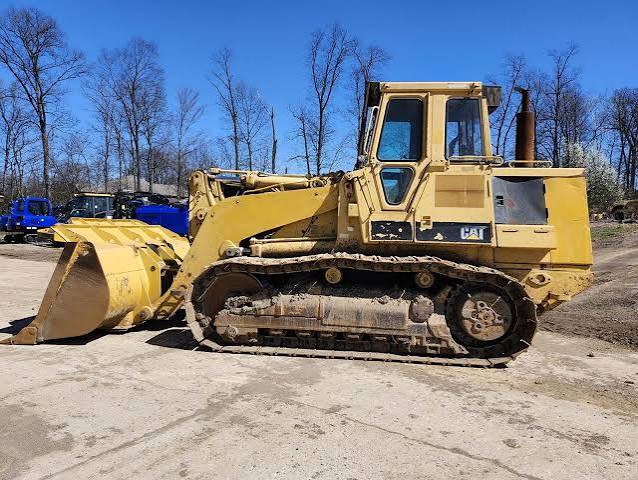

CaterpillarCaterpillar
973C WH
Crawler Loader
14 specifications
Caterpillar
973 LGP
- Operating Weight
- 56,293 lb
- Bucket Capacity - heaped
- 3.70 yd³
- Bucket Capacity - struck
- 3.20 yd³
- Net Power
- 210.0 hp
1 / 5
Image 1 of 5
Specifications
26 data points
Operating Specifications
| Operating Weight | 56,293 lb |
|---|---|
| Bucket Capacity - heaped | 3.70 yd³ |
| Bucket Capacity - struck | 3.20 yd³ |
| Max Speed | 6.5 mph |
| Fuel Capacity | 94.1 gal |
| Static Tipping Load | 37,011 lb |
| Breakout Force Bucket | 47,981 lb |
| Hydraulic System Fluid Capacity | 15.9 gal |
Engine
| Engine Model | 3306 |
|---|---|
| Displacement | 641 in³ |
| Net Power | 210.0 hp |
Hydraulic System
| Lower Time | 2.6 s |
|---|---|
| Raise Time | 7.4 s |
| Dump Time | 1.4 s |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 135 in |
| Width to Outside of Tracks | 109 in |
| Length with Bucket on Ground | 281 in |
| Reach at Dump Height | 53 in |
| Clearance at Full Height and Dump | 132 in |
Undercarriage
| Length of Track on Ground | 115 in |
|---|---|
| Track Gauge | 82 in |
| Track Shoe Width | 27 in |
| Ground Pressure | 9 psi |
| Number of Track Rollers per Side | 7 |
| Ground Contact Area | 6,107 in³ |
