Caterpillar

CB10

Smooth Drum Roller

Drum Width
67 in
Gross Power
131.0 hp
All smooth drum rollers

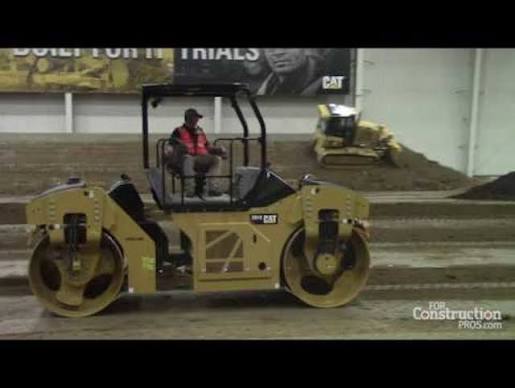

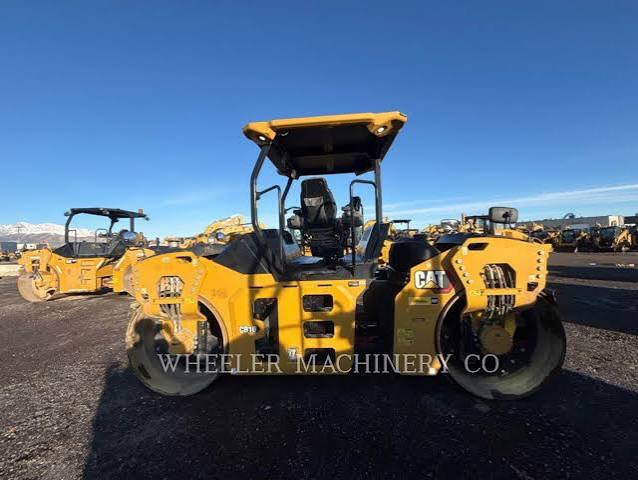

Caterpillar CB10 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: thompsonpartssolutions.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Travel Speed - Maximum7.5 mph
Standard Compaction Width67 in
Maximum Compaction Width73 in

Engine

Engine specifications
Engine ModelCat C4.4 with ACERT Technology
Gross Power131.0 hp

Dimensions

Dimensions specifications
Overall Length178 in
Overall Width73 in
Height - Top of ROPS/FOPS117 in
Wheel Base131 in
Drum Diameter47 in

General Specifications

General Specifications specifications
Engine typeCat — Starting 2019 Model Year
DRUM WIDTH IN. (CM)67 (170) — Starting 2019 Model Year
INSIDE TURN RADIUS IN. (CM)169 (430) — Starting 2019 Model Year
WIDTH IN. (CM)85 (217) — Starting 2024 Model Year
FREQUENCY HZ40/63.3 — Starting 2024 Model Year

Drum

Drum specifications
Drum Width67 in

Vibratory System

Vibratory System specifications
Nominal Amplitude - High0 in
Vibration SelectionIndependent per drum front only rear only both
Nominal Amplitude - Low0 in
