Caterpillar

CB114

Smooth Drum Roller

Operating Weight
3,307 lb
Max Speed
5.0 mph
Gross Power
19.8 hp
All smooth drum rollers

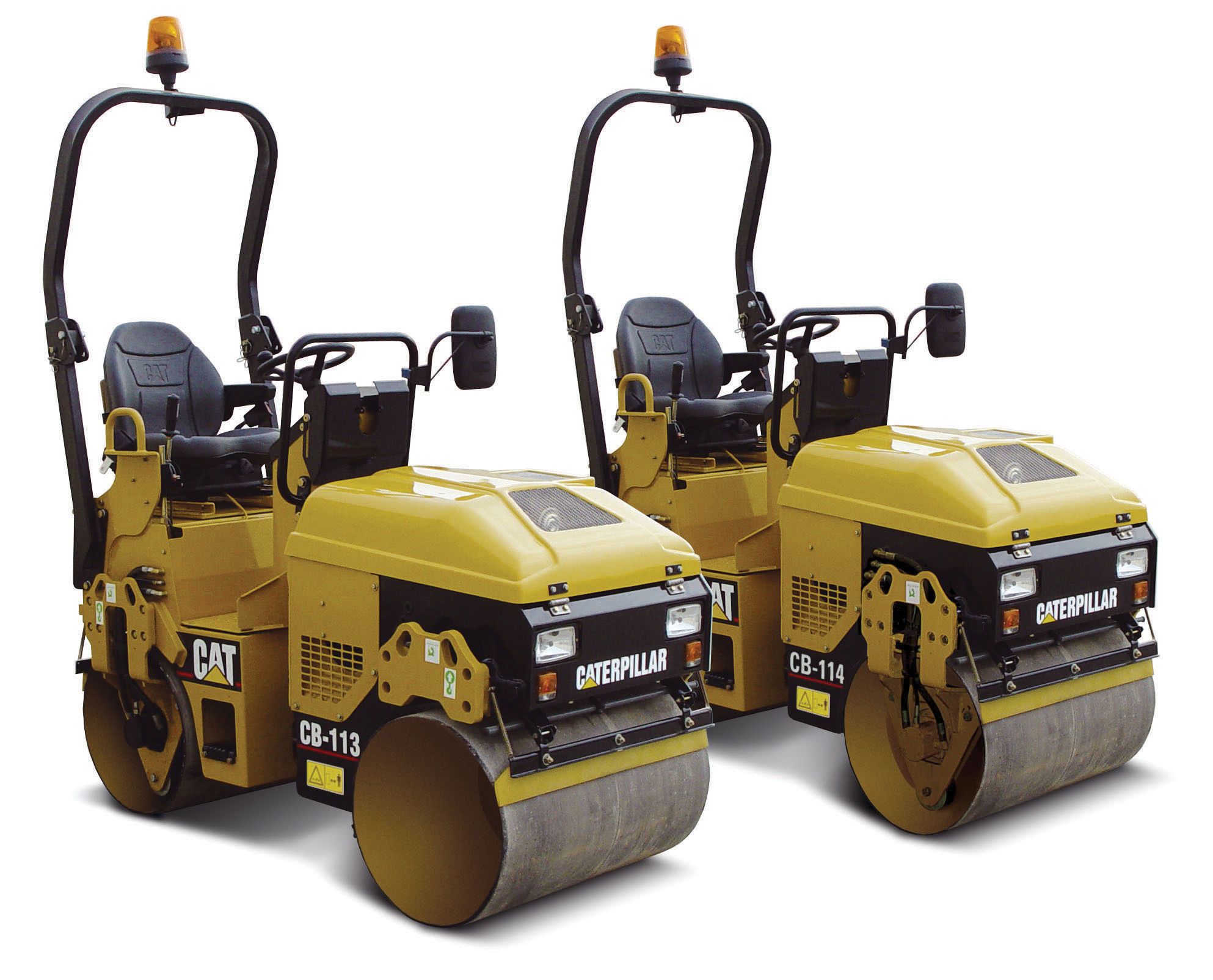

Caterpillar CB114 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,307 lb
Max Speed5.0 mph
Fuel Capacity5.9 gal
Operating Width35 in
Operating Voltage12 V
Hydraulic System Fluid Capacity12.7 gal
Engine Oil Capacity0.7 gal
Alternator Supplied Amperage55 A

Engine

Engine specifications
Engine Model2G 40H
Displacement61 in³
Gross Power19.8 hp
MakeCaterpillar

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab104 in
Wheelbase5 in
Overall Length7 in
Turning Radius - Inside118 in

Drum

Drum specifications
Drum Diameter23 in
Vibration Frequency 153 vpm
Static Linear Load11 lb-ft
Nominal Amplitude - Med0 in
Centrifugal Force - MEd2,316 lb
