BOMAG

BW 900-50

Smooth Drum Roller

Max Speed
5.4 mph
Gross Power
20.0 hp
All smooth drum rollers

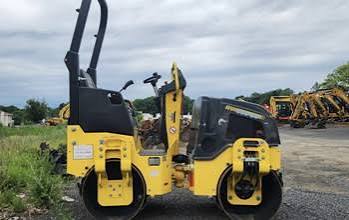

BOMAG BW 900-50 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: farrellequipment.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Max Speed5.4 mph
Fuel Capacity7.1 gal
Operating Width38 in
Spray Water Capacity36.2 gal

Engine

Engine specifications
Engine ModelGX 630
Gross Power20.0 hp
Number of Cylinders2
Engine MakeHonda
MakeHonda

Weights

Weights specifications
Operating Weight - standard2,646 lb
Max Static Linear Load - Drive Drum3 lb-ft
Average axle load CECE1,321 lb

Dimensions

Dimensions specifications
Ground Clearance11 in
Wheelbase49 in
Overall Length7 in
Overall Width39 in
Height - Top of ROPS/FOPS91 in
Turning Radius - Inside65 in
Height69 in

Brakes & Steering

Brakes & Steering specifications
Service brakeHydrostatic
Parking brakeHydromechanical

General Specifications

General Specifications specifications
Engine typeHonda GX 630 — Starting 2024 Model Year
DRUM WIDTH IN. (CM)35.4 (90) — Starting 2024 Model Year
INSIDE TURN RADIUS IN. (CM)64.8 (164.7) — Starting 2024 Model Year
WIDTH IN. (CM)37.8 (96.1) — Starting 2024 Model Year
FREQUENCY HZ70 — Starting 2024 Model Year

Drum

Drum specifications
Nominal Amplitude - High0 in
Centrifugal Force - High3,372 lb
Frequency70 vpm

Steering System

Steering System specifications
Steering MethodHydrostatic
Oscillating angle6 °
SystemOscillatory Articulation
Steering angle to either side33 °
