Caterpillar
Sakai
SW230
Smooth Drum Roller
18 specifications
1 / 5

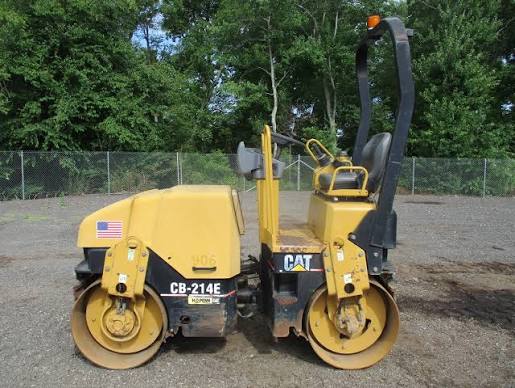

Image 1 of 5
Specifications
45 data points
Operating Specifications
| Operating Weight | 5,401 lb |
|---|---|
| Max Speed | 6.3 mph |
| Fuel Capacity | 12.3 gal |
| Operating Width | 43 in |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 8.0 gal |
| Engine Oil Capacity | 1.6 gal |
| Alternator Supplied Amperage | 55 A |
| Travel Speed - Maximum | 6.0 mph |
| Ground Clearance | 11 in |
| Curb Clearance | 21 in |
| Turning Radius - Inside Drum Edge | 1,188 in |
| Turning Radius - Outside Drum Edge | 138 in |
Engine
| Displacement | 91 in³ |
|---|---|
| Net Power | 30.9 hp |
| Aspiration | naturally aspirated |
| Make | Caterpillar |
| Stroke | 4 in |
| Bore | 3 in |
| Net Power - ISO 9249 | 30.3 hp |
Weights
| Operating Weight - With ROPS/FOPS | 5,400 lb |
|---|---|
| Operating Weight - At Rear Drum with ROPS/FOPS | 2,870 lb |
| Operating Weight - At Front Drum with ROPS/FOPS | 2,540 lb |
| Operating Weight - Without ROPS/FOPS | 5,270 lb |
Dimensions
| Ground Clearance | 10 in |
|---|---|
| Height - Top of Cab | 102 in |
| Wheelbase | 6 in |
| Overall Length | 96 in |
| Height - Top of ROPS/FOPS | 102 in |
| Turning Radius - Inside | 99 in |
| Wheel Base | 69 in |
| Compaction Width | 39 in |
| Height - Steering Wheel | 69 in |
Drum
| Drum Diameter | 28 in |
|---|---|
| Vibration Frequency 1 | 63 vpm |
| Static Linear Load | 15 lb-ft |
| Nominal Amplitude - Med | 0 in |
| Centrifugal Force - MEd | 6,205 lb |
Service Refill Capacities
| Fuel Tank Capacity | 12.3 gal |
|---|---|
| Water Spray Tank Capacity | 39.0 gal |
Vibratory System
| Nominal Amplitude - High | 0 in |
|---|---|
| Centrifugal Force per Drum - Maximum | 6,075 lb |
| Vibration Selection | Front rear or both |
| Drum Diameter | 28 in |
| Eccentric Weight Drive | Hydraulic |
