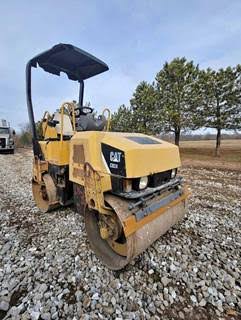

Caterpillar
Sakai
SW230
Smooth Drum Roller
18 specifications
1 / 5
Image 1 of 5
Specifications
25 data points
Operating Specifications
| Operating Weight | 5,401 lb |
|---|---|
| Max Speed | 6.6 mph |
| Fuel Capacity | 14.2 gal |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 10.6 gal |
| Engine Oil Capacity | 1.2 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | 2M40L |
|---|---|
| Displacement | 105 in³ |
| Power Measured @ | 2,600 rpm |
| Gross Power | 32.9 hp |
| Number of Cylinders | 2 |
Dimensions
| Ground Clearance | 10 in |
|---|---|
| Height - Top of Cab | 102 in |
| Wheelbase | 6 in |
| Overall Length | 8 in |
| Overall Width | 52 in |
| Drum Diameter - Front | 28 in |
| Drum Diameter - Rear | 28 in |
Drum
| Drum Width | 47 in |
|---|---|
| Drum Diameter | 28 in |
| Vibration Frequency 1 | 50 vpm |
| Nominal Amplitude - High | 0 in |
| Centrifugal Force - High | 5,400 lb |
| Static Linear Load | 5 lb-ft |

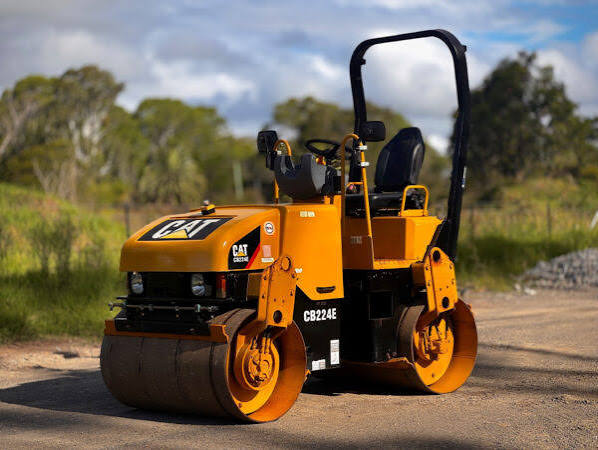

Comparable machines
