Caterpillar

CB22B

Smooth Drum Roller

Operating Weight
5,629 lb
Drum Width
39 in
Gross Power
36.2 hp
All smooth drum rollers

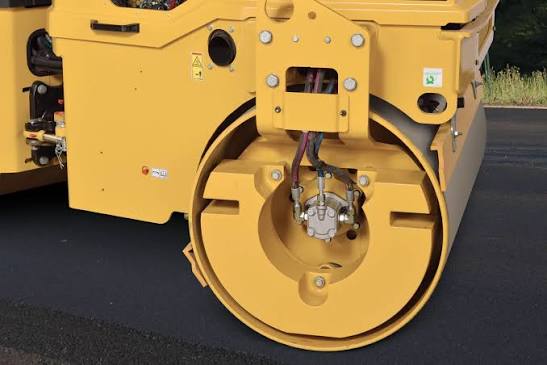

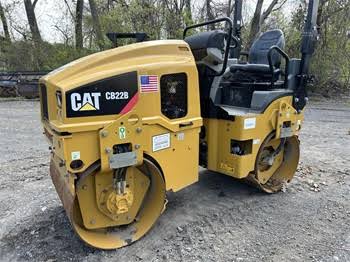

Caterpillar CB22B Smooth Drum Roller
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,629 lb
Fuel Capacity17.0 gal
Operating Width44 in
Travel Speed - Maximum7.5 mph
Standard Compaction Width39 in
Ground Clearance12 in
Curb Clearance24 in
Turning Radius - Inside Drum Edge105 in
Static Linear Load72 lb

Engine

Engine specifications
Engine ModelC1.5
Gross Power36.2 hp
MakeCat

Weights

Weights specifications
Operating Weight5,629 lb
Maximum Weight at Front Drum2,669 lb
Maximum Weight at Rear Drum2,960 lb

Dimensions

Dimensions specifications
Ground Clearance1 in
Wheelbase4 in
Overall Length102 in
Overall Width44 in
Turning Radius - Inside105 in
Wheel Base72 in
Drum Diameter28 in
Maximum Machine Height102 in

Transmission

Transmission specifications
Max Speed7.5 mph

General Specifications

General Specifications specifications
Engine typeCat — Starting 2019 Model Year
DRUM WIDTH IN. (CM)39 (100) — Starting 2019 Model Year
INSIDE TURN RADIUS IN. (CM)105 (267) — Starting 2019 Model Year
WIDTH IN. (CM)44 (111) — Starting 2019 Model Year
FREQUENCY HZ42/52/63 — Starting 2019 Model Year

Drum

Drum specifications
Drum Width39 in
Vibration Frequency—

Service Refill Capacities

Service Refill Capacities specifications
Fuel Tank Capacity17.0 gal
Water Spray Tank Capacity62.0 gal

Vibratory System

Vibratory System specifications
Nominal Amplitude - High0 in
Centrifugal Force per Drum - Maximum6,475 lb
Centrifugal Force per Drum - Minimum2,878 lb
Frequency42 – 63 vpm
