BOMAG

BW 100 ADM-5

Smooth Drum Roller

Max Speed
6.2 mph
Gross Power
20.2 hp
All smooth drum rollers

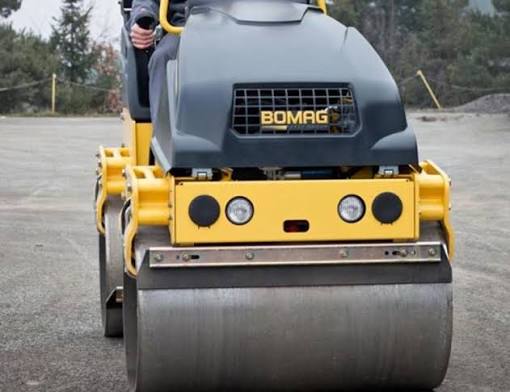

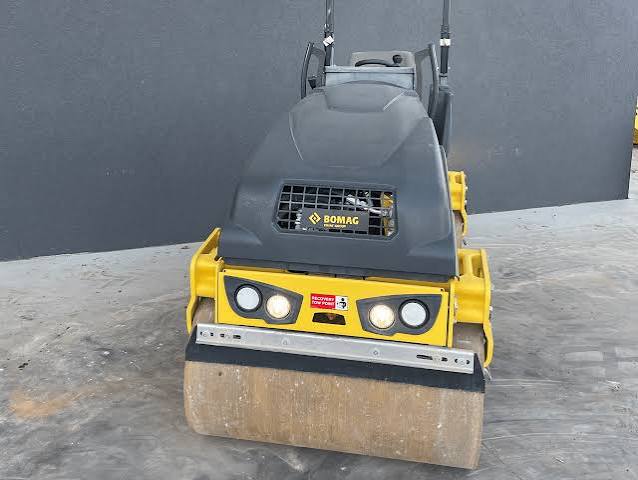

BOMAG BW 100 ADM-5 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: tuttbryant.com.au

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Max Speed6.2 mph
Fuel Capacity7.9 gal
Operating Width42 in
Spray Water Capacity26.4 gal

Engine

Engine specifications
Engine ModelD 902
Gross Power20.2 hp
Number of Cylinders3
Engine MakeKubota
MakeKubota

Weights

Weights specifications
Operating Weight - standard3,638 lb
Max Static Linear Load - Drive Drum4 lb-ft
Gross Weight4,409 lb

Dimensions

Dimensions specifications
Ground Clearance11 in
Wheelbase59 in
Overall Length86 in
Overall Width42 in
Height - Top of ROPS/FOPS91 in
Turning Radius - Inside78 in
Height65 in
Track radius inner78 in

Brakes & Steering

Brakes & Steering specifications
Service brakeHydrostatic
Parking brakeHydromechanical

General Specifications

General Specifications specifications
Engine typeKubota D902 — Starting 2024 Model Year
DRUM WIDTH IN. (CM)39.4 (100) — Starting 2024 Model Year
INSIDE TURN RADIUS IN. (CM)78 (198) — Starting 2024 Model Year
WIDTH IN. (CM)41.6 (105.6) — Starting 2024 Model Year
FREQUENCY HZ42/63 — Starting 2024 Model Year

Drum

Drum specifications
Nominal Amplitude - High0 in
Centrifugal Force - High3,822 lb
Frequency63 vpm

Steering System

Steering System specifications
Steering MethodHydrostatic
Oscillating angle8 °
SystemOscillatory Articulation
Steering angle to either side33 °
