Caterpillar

CB44B

Smooth Drum Roller

Drum Width
59 in
Gross Power
102.0 hp
All smooth drum rollers

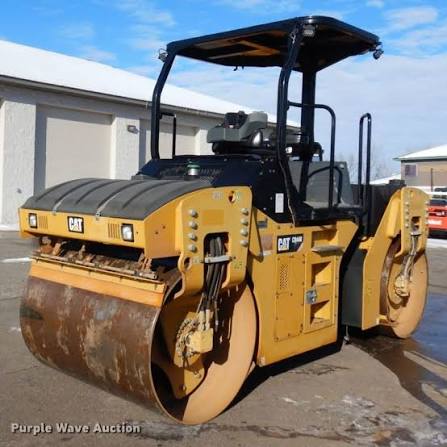

Caterpillar CB44B Smooth Drum Roller
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Width66 in
Travel Speed - Maximum7.5 mph
Standard Compaction Width59 in
Ground Clearance9 in
Curb Clearance35 in
Turning Radius - Inside Drum Edge175 in
Maximum Compaction Width65 in

Engine

Engine specifications
Engine ModelCat C3.4B with ACERT Technology
Gross Power102.0 hp
MakeCat
Stroke4 in

Dimensions

Dimensions specifications
Overall Length178 in
Overall Width66 in
Height - Top of ROPS/FOPS117 in
Turning Radius - Inside176 in
Wheel Base131 in
Drum Diameter43 in
Compaction Width59 in

General Specifications

General Specifications specifications
Engine typeCat — Starting 2016 Model Year
DRUM WIDTH IN. (CM)59 (150) — Starting 2016 Model Year
INSIDE TURN RADIUS IN. (CM)176 (440) — Starting 2016 Model Year
WIDTH IN. (CM)66 (167) — Starting 2016 Model Year
FREQUENCY HZ53.3/63.3 — Starting 2016 Model Year

Drum

Drum specifications
Drum Width59 in
Vibration Frequency—

Service Refill Capacities

Service Refill Capacities specifications
Fuel Tank Capacity55.0 gal
Water Spray Tank Capacity196.0 gal

Vibratory System

Vibratory System specifications
Nominal Amplitude - High0 in
Vibration SelectionIndependent per drum front only rear only both
Nominal Amplitude - Low0 in
Drum Diameter44 in
Eccentric Weight DriveHydraulic direct auto reversing
