Caterpillar

CB54B

Smooth Drum Roller

Gross Power
133.2 hp
All smooth drum rollers

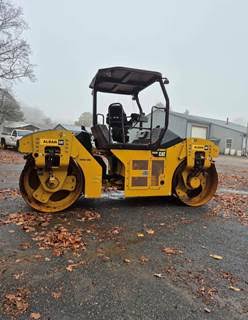

Caterpillar CB54B Smooth Drum Roller
1 / 5
Image 1 of 5
Image: mylittlesalesman.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Width74 in
Travel Speed - Maximum7.5 mph
Standard Compaction Width67 in
Ground Clearance11 in
Curb Clearance37 in
Turning Radius - Inside Drum Edge172 in
Maximum Compaction Width73 in

Engine

Engine specifications
Engine ModelCat C4.4 with ACERT Technology
Gross Power133.2 hp
MakeCat
Bore4 in
Stroke5 in

Dimensions

Dimensions specifications
Overall Length178 in
Overall Width74 in
Height - Top of ROPS/FOPS117 in
Wheel Base131 in
Drum Diameter47 in
Compaction Width67 in

General Specifications

General Specifications specifications
Engine typeCat — Starting 2019 Model Year
DRUM WIDTH IN. (CM)67 (170) — Starting 2019 Model Year
INSIDE TURN RADIUS IN. (CM)169 (430) — Starting 2019 Model Year
WIDTH IN. (CM)74 (187) — Starting 2019 Model Year
FREQUENCY HZ43/63.3 — Starting 2019 Model Year

Drum

Drum specifications
Vibration Frequency—

Service Refill Capacities

Service Refill Capacities specifications
Fuel Tank Capacity55.0 gal
Water Spray Tank Capacity221.0 gal

Vibratory System

Vibratory System specifications
Nominal Amplitude - High0 in
Vibration SelectionIndependent per drum front only rear only both
Nominal Amplitude - Low0 in
Drum Diameter47 in
Eccentric Weight DriveHydraulic direct auto reversing
