Caterpillar

CB64

Smooth Drum Roller

Max Speed
8.0 mph
Drum Width
84 in
Gross Power
137.0 hp
All smooth drum rollers

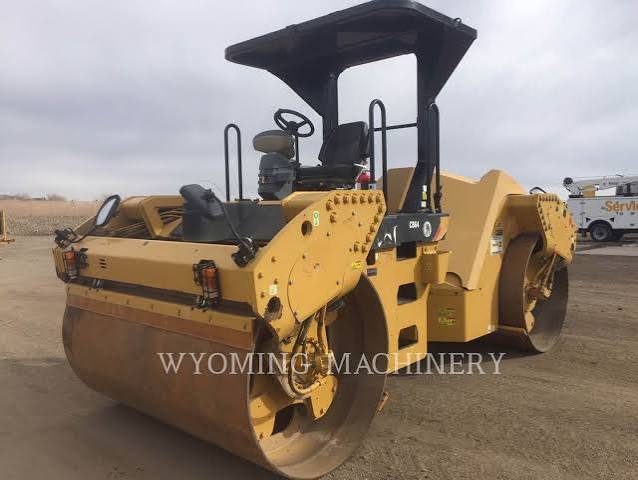

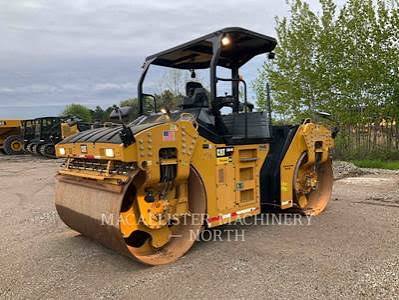

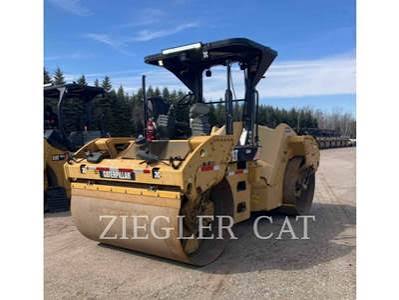

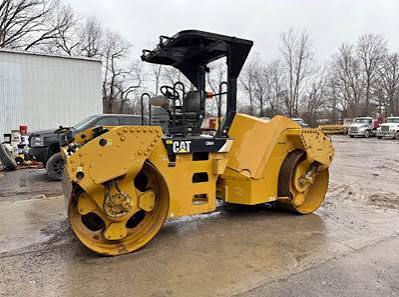

Caterpillar CB64 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: macallistermachineryused.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Max Speed8.0 mph
Fuel Capacity50.5 gal
Operating Width92 in
Engine Oil Capacity2.4 gal
Cooling System Fluid Capacity5.9 gal
Travel Speed - Maximum8.0 mph
Standard Compaction Width84 in
Ground Clearance9 in
Curb Clearance34 in
Turning Radius - Inside Drum Edge155 in
Static Linear Load170 lb

Engine

Engine specifications
Engine ModelC4.4 with ACERT
Gross Power137.0 hp
Net Power130.1 hp

Dimensions

Dimensions specifications
Ground Clearance9 in
Height - Top of Cab121 in
Wheelbase12 in
Overall Length194 in
Overall Width93 in
Wheel Base144 in
Drum Diameter51 in

Drum

Drum specifications
Drum Width84 in
Nominal Amplitude - High0 in
Centrifugal Force - High19,963 lb
Centrifugal Force - Low16,951 lb
Nominal Amplitude - Low0 in
Frequency2,520 – 3,800 vpm

Service Refill Capacities

Service Refill Capacities specifications
Fuel Tank Capacity50.0 gal
Water Spray Tank Capacity290.0 gal

Vibratory System

Vibratory System specifications
Nominal Amplitude - High0 in
Centrifugal Force per Drum - Maximum31,100 lb
Centrifugal Force per Drum - Minimum12 lb
Nominal Amplitude - Low0 in
Frequency42 – 63 vpm
