Caterpillar

CD8 - Solid Drum

Smooth Drum Roller

Drum Width
59 in
Gross Power
100.0 hp
All smooth drum rollers

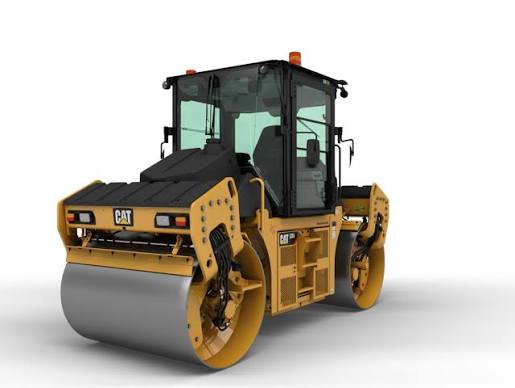

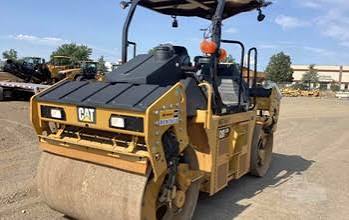

Caterpillar CD8 - Solid Drum Smooth Drum Roller
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Travel Speed - Maximum7.5 mph
Standard Compaction Width59 in
Static Linear Load146 lb
Maximum Compaction Width111 in
Drum Offset51 in

Engine

Engine specifications
Engine ModelCat C3.4 with ACERT Technology
Gross Power100.0 hp

Weights

Weights specifications
Maximum Operating Weight with Cab17,593 lb
Standard Operating Weight with Cab16,314 lb

Dimensions

Dimensions specifications
Overall Length166 in
Overall Width6 in
Height - Top of ROPS/FOPS115 in
Wheel Base124 in

Drum

Drum specifications
Drum Width59 in

Service Refill Capacities

Service Refill Capacities specifications
Fuel Tank Capacity36.0 gal
Water Spray Tank Capacity159.0 gal

Vibratory System

Vibratory System specifications
Centrifugal Force per Drum - Maximum17,603 lb
Centrifugal Force per Drum - Minimum11,982 lb
Vibration SelectionIndependent per drum front only rear only both
