Ingersoll Rand

SD-45D

Smooth Drum Roller

Operating Weight
10,598 lb
Max Speed
4.6 mph
Drum Width
54 in
All smooth drum rollers

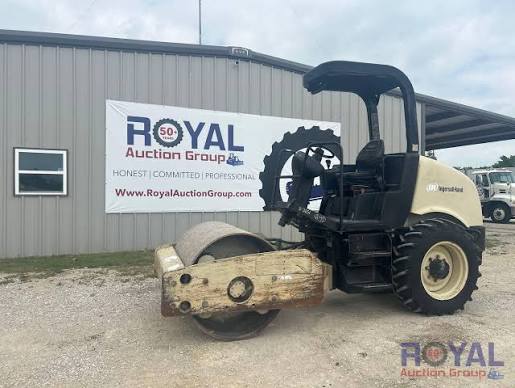

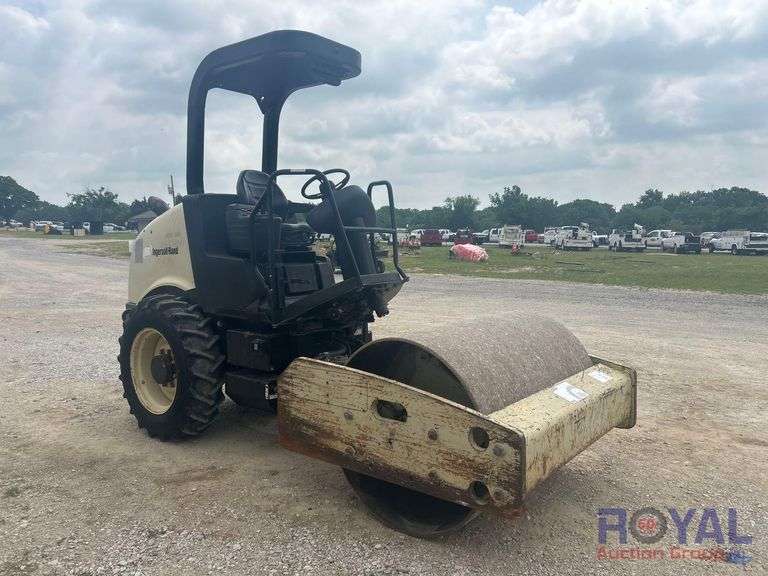

Ingersoll Rand SD-45D Smooth Drum Roller
1 / 5
Image 1 of 5
Image: live.royalauctiongroup.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,598 lb
Max Speed4.6 mph
Fuel Capacity25.9 gal
Operating Voltage12 V
Hydraulic System Fluid Capacity25.4 gal
Alternator Supplied Amperage60 A

Engine

Engine specifications
Engine ModelCummins 4 3.3
Net Power80.0 hp

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab111 in
Wheelbase8 in
Overall Length13 in
Overall Width64 in

Tires & Wheels

Tires & Wheels specifications
Tires12.4x24-4PR R1 Lug

Drum

Drum specifications
Drum Width54 in
Drum Diameter39 in
Vibration Frequency 132 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High22,256 lb
