Caterpillar

D3C LGP III

Crawler Dozer

Operating Weight
16,842 lb
Max Speed - Forward
6.7 mph
Gross Power
78.0 hp
Net Power
71.0 hp
All crawler dozers

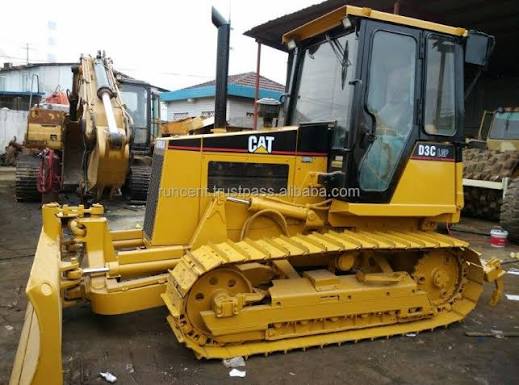

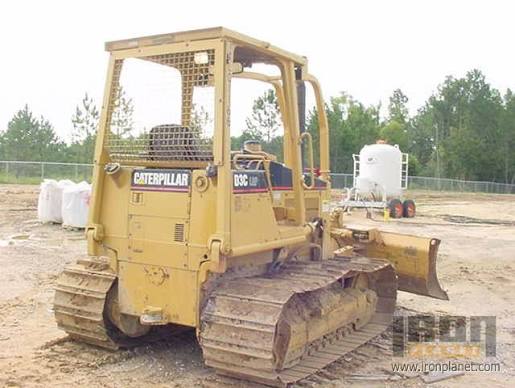

Caterpillar D3C LGP III Crawler Dozer
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,842 lb
Fuel Capacity32.0 gal
Cooling System Fluid Capacity2.4 gal
Final Drives Fluid Capacity3.5 gal
Engine Oil Capacity3.5 gal
Hydraulic Fluid Capacity15.1 gal
Operating Voltage12 V
Alternator Supplied Amperage55 A

Engine

Engine specifications
Engine ModelCat 3046
Displacement305 in³
Power Measured @2,400 rpm
Gross Power78.0 hp
Net Power71.0 hp
Number of Cylinders6
AspirationNatural

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity14.3 gal/min
Relief Valve Pressure2,500 psi
Pump TypeGear Style

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab106 in
Length of Track on Ground81 in
Width Over Tracks66 in
Length w/ Blade158 in
Length w/o Blade118 in

Transmission

Transmission specifications
Max Speed - Forward6.7 mph
Max Speed - Reverse7.1 mph
Transmission TypePowershift
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge66 in
Number of Track Rollers per Side6
Number of Shoes per Side39
Standard Shoe Size25 in

Standard Blade

Standard Blade specifications
Width125 in
Height30 in
Capacity1.70 yd³
Blade Angle (both directions)25 °
