Caterpillar

D3G LGP

Crawler Dozer

Operating Weight
17,160 lb
Max Speed - Forward
5.6 mph
Gross Power
77.0 hp
Net Power
70.0 hp
All crawler dozers

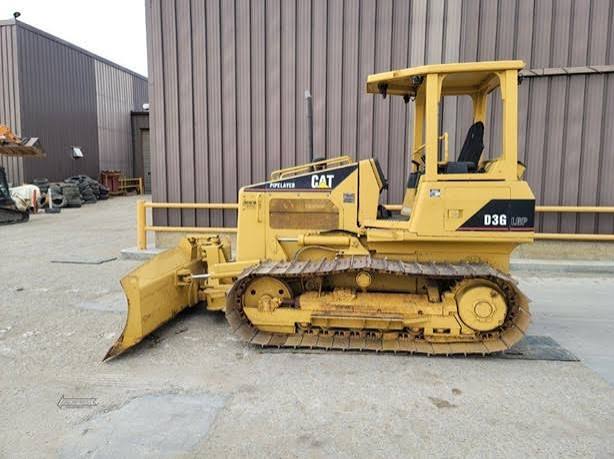

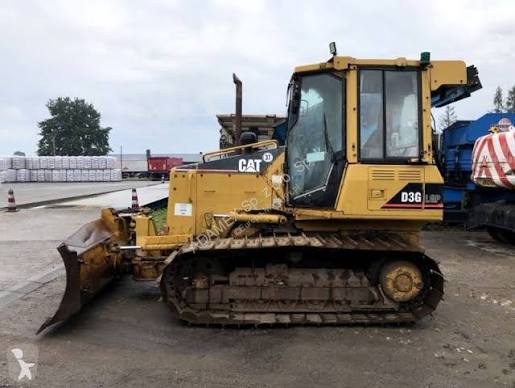

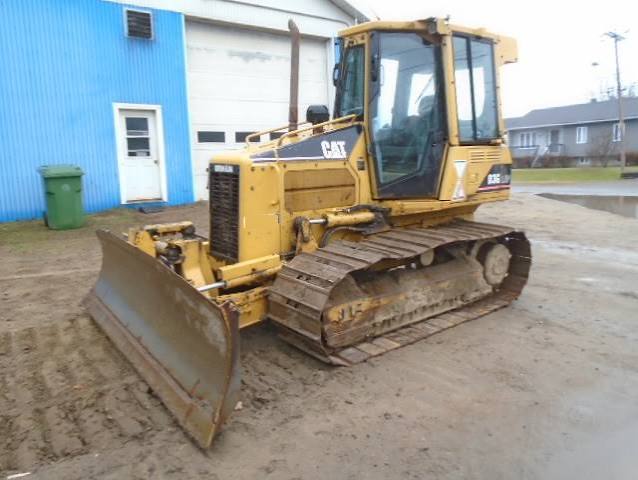

Caterpillar D3G LGP Crawler Dozer
1 / 5
Image 1 of 5
Image: plantandequipment.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight17,160 lb
Fuel Capacity43.6 gal
Cooling System Fluid Capacity5.5 gal
Final Drives Fluid Capacity5.4 gal
Engine Oil Capacity3.4 gal
Hydraulic Fluid Capacity12.0 gal
Operating Voltage12 V
Alternator Supplied Amperage120 A

Engine

Engine specifications
Engine Model3046T
Displacement305 in³
Power Measured @2,200 rpm
Gross Power77.0 hp
Net Power70.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity16.1 gal/min
Relief Valve Pressure2,900 psi

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab109 in
Length of Track on Ground81 in
Width Over Tracks91 in
Length w/ Blade158 in
Length w/o Blade122 in

Transmission

Transmission specifications
Max Speed - Forward5.6 mph
Max Speed - Reverse6.0 mph
Transmission TypeHydrostatic
Number of Forward Gears1
Number of Reverse Gears1

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge66 in
Number of Track Rollers per Side6
Number of Shoes per Side39
Standard Shoe Size25 in
Ground Contact Area4,045 in³

Standard Blade

Standard Blade specifications
Width125 in
Height33 in
Capacity2.00 yd³
Blade Angle (both directions)25 °
