CaterpillarCaterpillar
D3K LGP
Crawler Dozer
35 specifications
Caterpillar
D3K XL
- Operating Weight
- 17,185 lb
- Max Speed - Forward
- 5.6 mph
- Gross Power
- 81.0 hp
- Net Power
- 74.0 hp
1 / 5

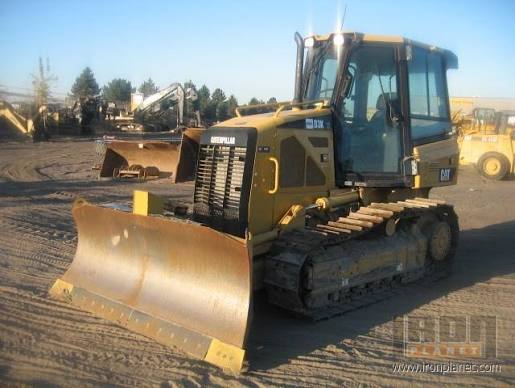

Image 1 of 5
Specifications
35 data points
Operating Specifications
| Operating Weight | 17,185 lb |
|---|---|
| Fuel Capacity | 51.5 gal |
| Cooling System Fluid Capacity | 6.0 gal |
| Final Drives Fluid Capacity | 2.6 gal |
| Engine Oil Capacity | 3.0 gal |
| Hydraulic Fluid Capacity | 15.7 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 120 A |
Engine
| Engine Model | C4.4 ACERT |
|---|---|
| Displacement | 269 in³ |
| Gross Power | 81.0 hp |
| Net Power | 74.0 hp |
| Number of Cylinders | 4 |
| Make | Cat |
Hydraulic System
| Pump Flow Capacity | 19.4 gal/min |
|---|---|
| Relief Valve Pressure | 2,988 psi |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 108 in |
| Length of Track on Ground | 84 in |
| Width Over Tracks | 76 in |
| Length w/ Blade | 168 in |
| Length w/o Blade | 130 in |
Transmission
| Max Speed - Forward | 5.6 mph |
|---|---|
| Max Speed - Reverse | 6.2 mph |
| Transmission Type | Hydrostatic |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 60 in |
| Number of Track Rollers per Side | 6 |
| Number of Shoes per Side | 41 |
| Standard Shoe Size | 16 in |
| Ground Contact Area | 2,637 in³ |
Standard Blade
| Width | 104 in |
|---|---|
| Height | 36 in |
| Capacity | 2.00 yd³ |
| Blade Angle (both directions) | 25 ° |
