Caterpillar

D3K2 XL

Crawler Dozer

Operating Weight
17,544 lb
Max Speed - Forward
5.6 mph
Net Power
80.0 hp
All crawler dozers

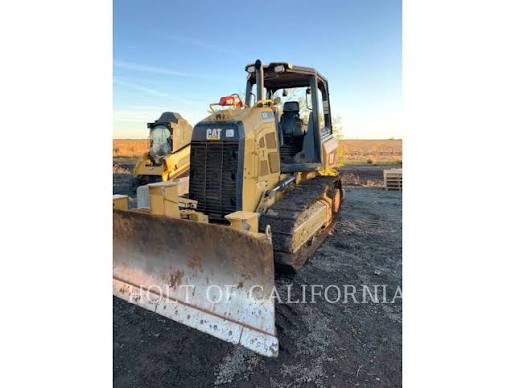

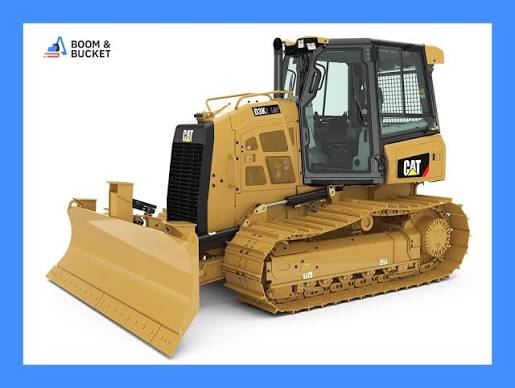

Caterpillar D3K2 XL Crawler Dozer
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight17,544 lb
Fuel Capacity51.5 gal
Cooling System Fluid Capacity6.0 gal
Final Drives Fluid Capacity2.6 gal
Engine Oil Capacity3.0 gal
Hydraulic Fluid Capacity15.7 gal
Operating Voltage12 V
Alternator Supplied Amperage120 A

Engine

Engine specifications
Engine ModelC4.4 ACERT
Displacement269 in³
Net Power80.0 hp
MakeCat

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity19.4 gal/min
Relief Valve Pressure2,988 psi

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab109 in
Length of Track on Ground84 in
Width Over Tracks76 in
Length w/ Blade168 in
Length w/o Blade130 in

Transmission

Transmission specifications
Max Speed - Forward5.6 mph
Max Speed - Reverse6.2 mph
Transmission TypeHydrostatic

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge60 in
Number of Track Rollers per Side6
Number of Shoes per Side41
Standard Shoe Size16 in
Ground Contact Area2,829 in³

General Specifications

General Specifications specifications
Weight lbs (kg)17,465 (7,922) — Starting 2019 Model Year
Engine typeCat C4.4 ACERT — Starting 2019 Model Year
Engine Power HP (KW)80 (60) — Starting 2019 Model Year

Standard Blade

Standard Blade specifications
Width104 in
Height36 in
Capacity2.00 yd³
Blade Angle (both directions)25 °
