CaterpillarCaterpillar
D3K LGP
Crawler Dozer
35 specifications
1 / 5
Image 1 of 5
Specifications
28 data points
Operating Specifications
| Operating Weight | 16,713 lb |
|---|---|
| Fuel Capacity | 30.2 gal |
| Hydraulic Fluid Capacity | 15.1 gal |
Engine
| Engine Model | 3204 |
|---|---|
| Displacement | 317 in³ |
| Gross Power | 80.0 hp |
Hydraulic System
| Pump Flow Capacity | 14.6 gal/min |
|---|---|
| Relief Valve Pressure | 2,500 psi |
Dimensions
| Ground Clearance | 12 in |
|---|---|
| Height - Top of Cab | 106 in |
| Length of Track on Ground | 81 in |
| Width Over Tracks | 73 in |
| Length w/ Blade | 152 in |
| Length w/o Blade | 119 in |
Transmission
| Max Speed - Forward | 6.9 mph |
|---|---|
| Max Speed - Reverse | 7.4 mph |
| Transmission Type | powershift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |

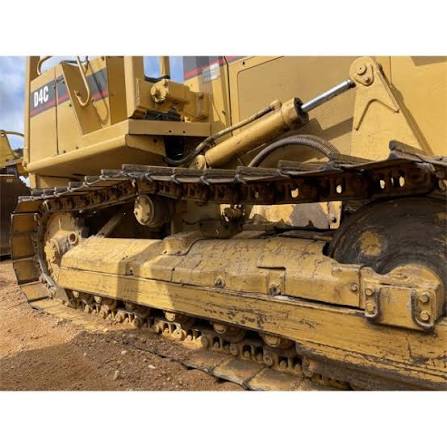

Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 56 in |
| Number of Track Rollers per Side | 6 |
| Standard Shoe Size | 16 in |
| Ground Contact Area | 2,589 in³ |
Standard Blade
| Width | 101 in |
|---|---|
| Height | 37 in |
| Capacity | 2.11 yd³ |
| Blade Angle (both directions) | 25 ° |
