Caterpillar

D4C LGP II

Crawler Dozer

Operating Weight
17,428 lb
Max Speed - Forward
6.9 mph
Gross Power
80.0 hp
All crawler dozers

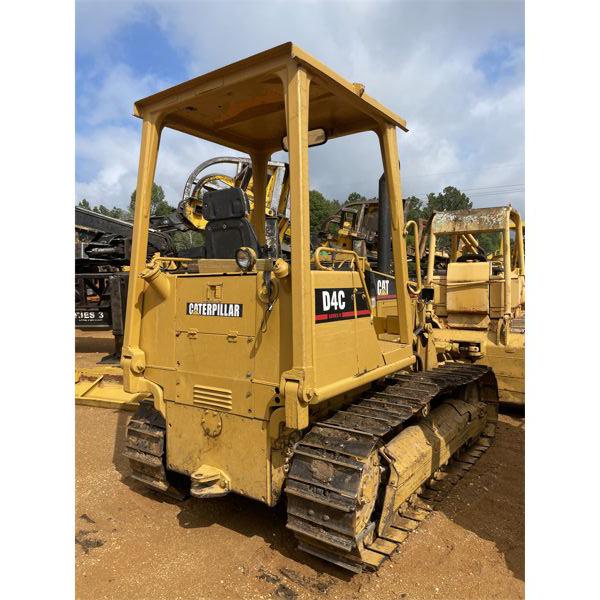

Caterpillar D4C LGP II Crawler Dozer
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight17,428 lb
Fuel Capacity30.2 gal

Engine

Engine specifications
Engine Model3204
Displacement317 in³
Gross Power80.0 hp

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab106 in
Length of Track on Ground81 in
Width Over Tracks91 in
Length w/ Blade159 in
Length w/o Blade119 in

Transmission

Transmission specifications
Max Speed - Forward6.9 mph
Max Speed - Reverse7.4 mph
Transmission Typepowershift
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge66 in
Number of Track Rollers per Side6
Standard Shoe Size25 in
Ground Contact Area4,046 in³

Standard Blade

Standard Blade specifications
Width128 in
Height33 in
Capacity2.20 yd³
Blade Angle (both directions)25 °
