Caterpillar

D4G XL

Crawler Dozer

Operating Weight
17,317 lb
Max Speed - Forward
5.6 mph
Gross Power
87.0 hp
Net Power
80.0 hp
All crawler dozers

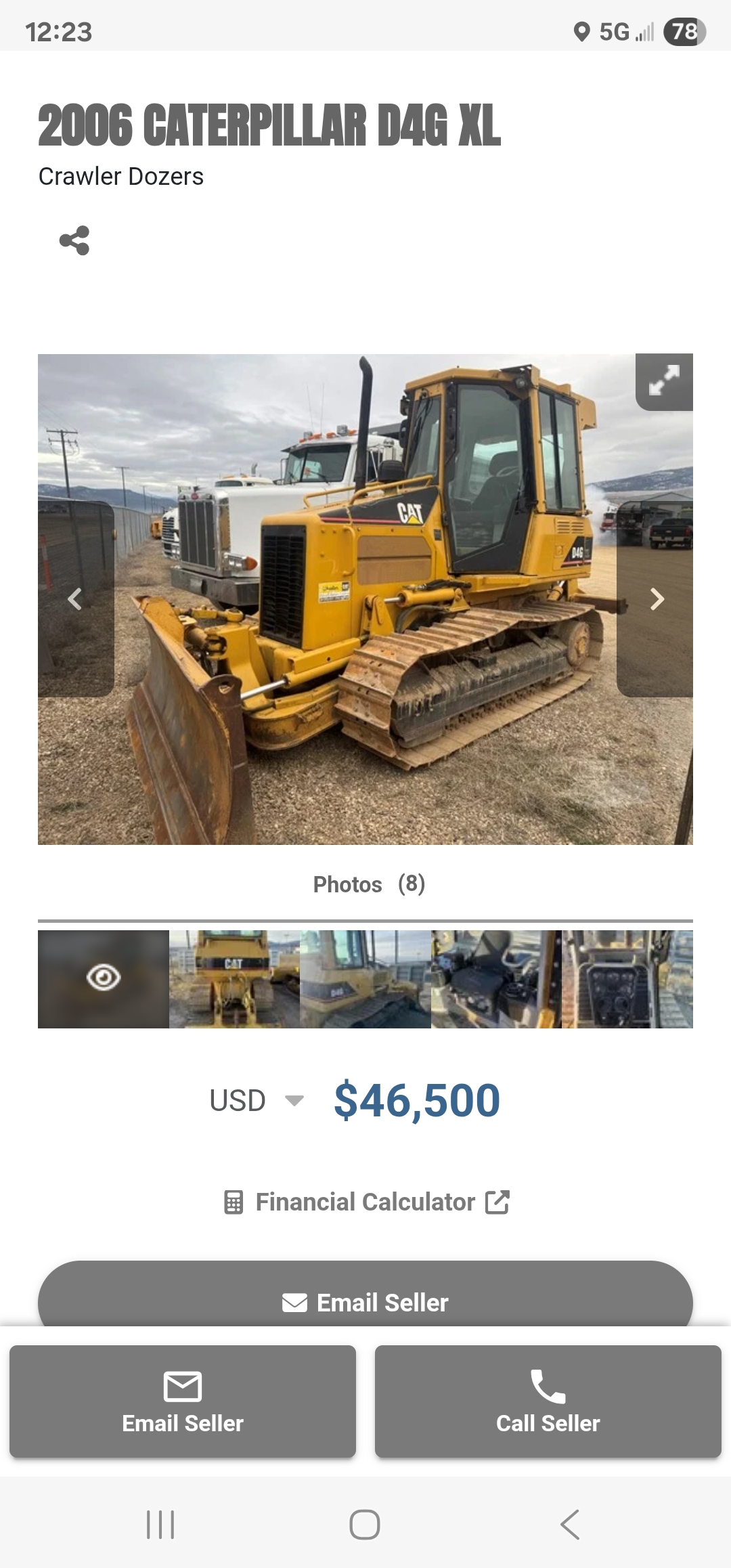

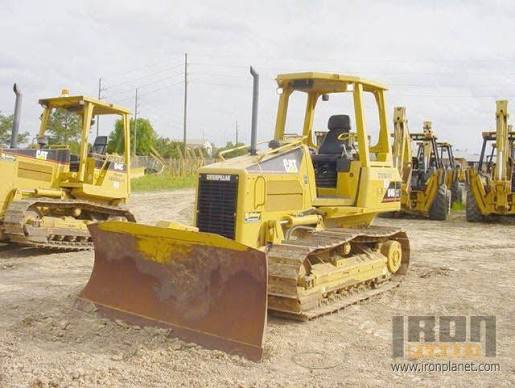

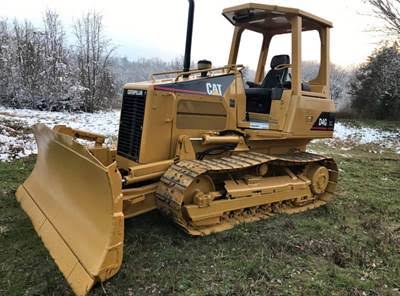

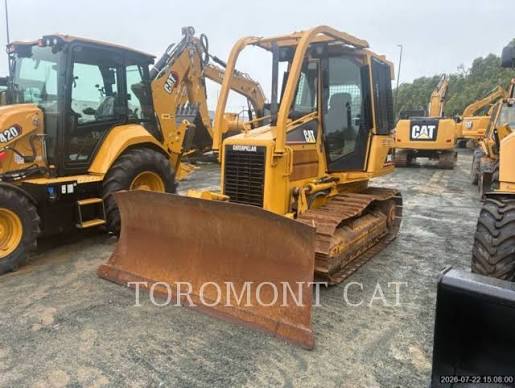

Caterpillar D4G XL Crawler Dozer
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight17,317 lb
Fuel Capacity48.6 gal
Cooling System Fluid Capacity5.5 gal
Final Drives Fluid Capacity3.9 gal
Engine Oil Capacity3.4 gal
Hydraulic Fluid Capacity12.0 gal
Operating Voltage12 V
Alternator Supplied Amperage120 A

Engine

Engine specifications
Engine Model3046T
Displacement305 in³
Power Measured @2,200 rpm
Gross Power87.0 hp
Net Power80.0 hp
Number of Cylinders6

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity16.1 gal/min
Relief Valve Pressure2,900 psi

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab108 in
Length of Track on Ground88 in
Width Over Tracks78 in
Length w/ Blade159 in
Length w/o Blade122 in

Transmission

Transmission specifications
Max Speed - Forward5.6 mph
Max Speed - Reverse6.0 mph
Transmission TypeHydrostatic
Number of Forward Gears1
Number of Reverse Gears1

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge60 in
Number of Track Rollers per Side7
Number of Shoes per Side41
Standard Shoe Size18 in
Ground Contact Area3,153 in³

Standard Blade

Standard Blade specifications
Width106 in
Height41 in
Capacity2.60 yd³
Blade Angle (both directions)25 °
