Caterpillar

D4H LGP II

Crawler Dozer

Operating Weight
25,882 lb
Max Speed - Forward
6.4 mph
Gross Power
95.0 hp
All crawler dozers

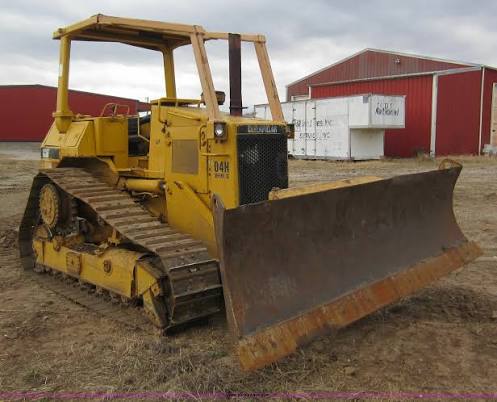

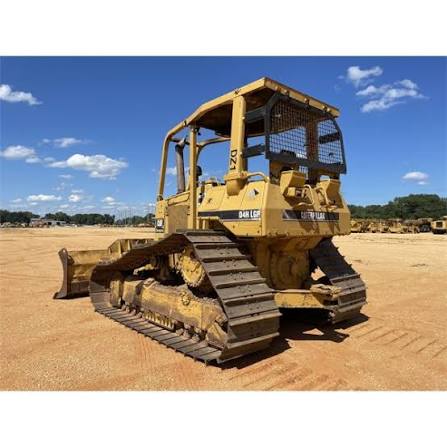

Caterpillar D4H LGP II Crawler Dozer
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight25,882 lb
Fuel Capacity44.2 gal

Engine

Engine specifications
Engine Model3204
Displacement317 in³
Gross Power95.0 hp

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab120 in
Length of Track on Ground103 in
Width Over Tracks109 in
Length w/ Blade194 in

Transmission

Transmission specifications
Max Speed - Forward6.4 mph
Max Speed - Reverse7.6 mph
Transmission Typepowershift
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge79 in
Number of Track Rollers per Side7
Standard Shoe Size30 in
Ground Contact Area6,169 in³

Standard Blade

Standard Blade specifications
Width128 in
Height36 in
Capacity2.69 yd³
Blade Angle (both directions)25 °
