Caterpillar
Komatsu

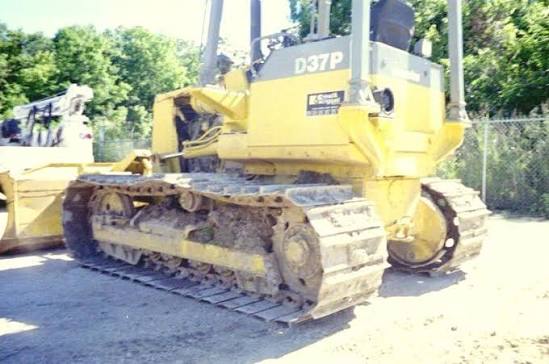

D37P-5E
Crawler Dozer
22 specifications
1 / 5
Image 1 of 5
Specifications
23 data points
Operating Specifications
| Operating Weight | 25,794 lb |
|---|---|
| Fuel Capacity | 65.0 gal |
Engine
| Engine Model | 3306 |
|---|---|
| Displacement | 641 in³ |
| Gross Power | 105.0 hp |
| Aspiration | Naturally |
Dimensions
| Ground Clearance | 12 in |
|---|---|
| Height - Top of Cab | 109 in |
| Length of Track on Ground | 88 in |
| Width Over Tracks | 94 in |
| Length w/ Blade | 181 in |
| Length w/o Blade | 144 in |
Transmission
| Max Speed - Forward | 6.3 mph |
|---|---|
| Max Speed - Reverse | 7.6 mph |
| Transmission Type | powershift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Ground Pressure | 9 psi |
|---|---|
| Track Gauge | 74 in |
| Number of Track Rollers per Side | 6 |
| Standard Shoe Size | 16 in |
| Ground Contact Area | 2,790 in³ |
Standard Blade
| Width | 125 in |
|---|
Comparable machines
Other crawler dozers in a similar weight class.
