Caterpillar

D5B LGP

Crawler Dozer

Operating Weight
32,397 lb
Max Speed - Forward
6.3 mph
Gross Power
104.6 hp
All crawler dozers

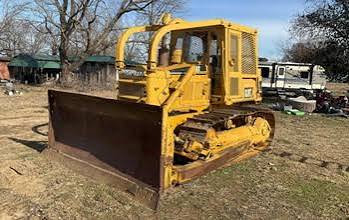

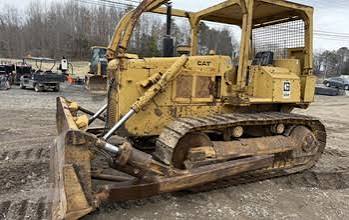

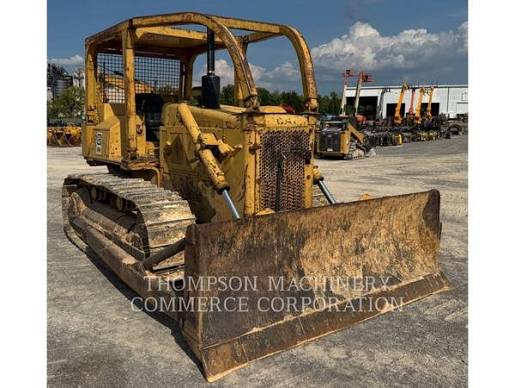

Caterpillar D5B LGP Crawler Dozer
1 / 5
Image 1 of 5
Image: surplusrecord.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight32,397 lb
Fuel Capacity65.0 gal

Engine

Engine specifications
Engine Model3306
Displacement641 in³
Gross Power104.6 hp

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab109 in
Length of Track on Ground111 in
Width Over Tracks115 in
Length w/ Blade197 in
Length w/o Blade150 in

Transmission

Transmission specifications
Max Speed - Forward6.3 mph
Max Speed - Reverse7.6 mph
Transmission Typepowershift
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge81 in
Number of Track Rollers per Side7
Standard Shoe Size34 in
Ground Contact Area7,549 in³

Standard Blade

Standard Blade specifications
Width139 in
Capacity3.40 yd³
