Caterpillar

D5H LGP

Crawler Dozer

Operating Weight
32,380 lb
Max Speed - Forward
6.3 mph
Gross Power
129.0 hp
Net Power
120.0 hp
All crawler dozers

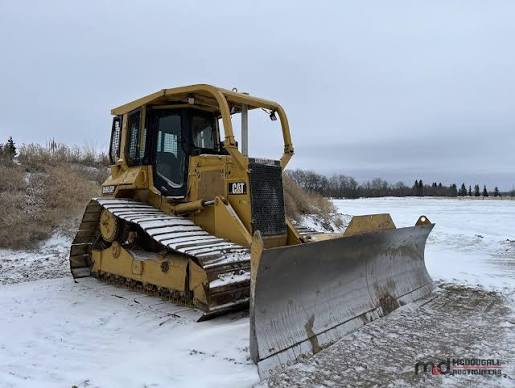

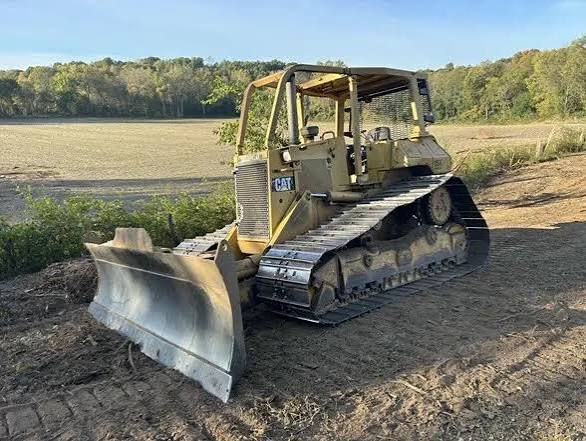

Caterpillar D5H LGP Crawler Dozer
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight32,380 lb
Fuel Capacity65.0 gal
Cooling System Fluid Capacity7.4 gal
Final Drives Fluid Capacity1.9 gal
Engine Oil Capacity4.8 gal
Hydraulic Fluid Capacity18.5 gal
Operating Voltage24 V
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine Model3304
Displacement427 in³
Power Measured @2,200 rpm
Gross Power129.0 hp
Net Power120.0 hp
Number of Cylinders4
Aspirationturbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity28.8 gal/min
Relief Valve Pressure3,000 psi
Pump TypeLoad sensing hydraulics variable displacement piston pump

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab121 in
Length of Track on Ground124 in
Width Over Tracks120 in
Length w/ Blade209 in
Length w/o Blade163 in

Transmission

Transmission specifications
Max Speed - Forward6.3 mph
Max Speed - Reverse7.8 mph
Transmission TypePlanetary powershift
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge85 in
Number of Track Rollers per Side8
Number of Shoes per Side46
Standard Shoe Size34 in
Ground Contact Area8,308 in³

Standard Blade

Standard Blade specifications
Width157 in
Height40 in
Capacity4.20 yd³
