Caterpillar

D5M XL

Crawler Dozer

Operating Weight
25,794 lb
Max Speed - Forward
6.2 mph
Gross Power
121.0 hp
Net Power
110.0 hp
All crawler dozers

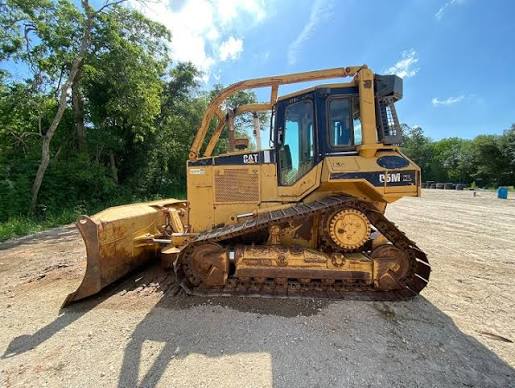

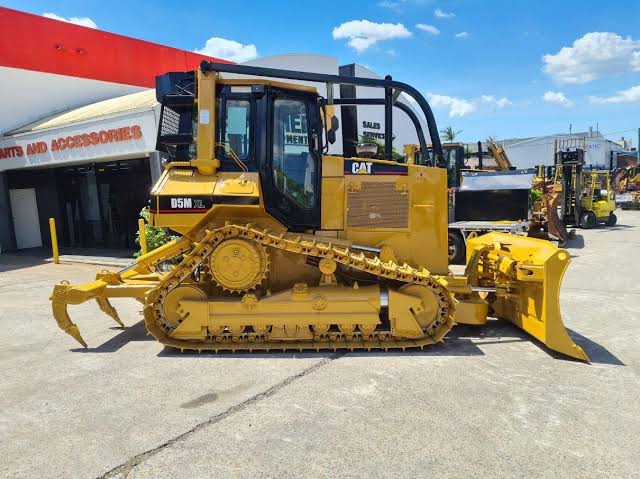

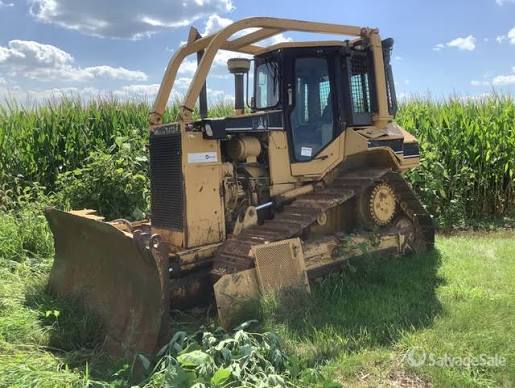

Caterpillar D5M XL Crawler Dozer
1 / 5
Image 1 of 5
Image: constructionequipmentguide.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight25,794 lb
Fuel Capacity57.6 gal
Cooling System Fluid Capacity12.2 gal
Final Drives Fluid Capacity1.6 gal
Engine Oil Capacity6.9 gal
Hydraulic Fluid Capacity8.5 gal
Operating Voltage24 V
Alternator Supplied Amperage70 A

Engine

Engine specifications
Engine Model3116T
Displacement403 in³
Power Measured @2,100 rpm
Gross Power121.0 hp
Net Power110.0 hp
Number of Cylinders6
AspirationTurbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity25.0 gal/min
Relief Valve Pressure3,000 psi
Pump TypePiston

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab119 in
Length of Track on Ground95 in
Width Over Tracks93 in
Length w/ Blade180 in
Length w/o Blade141 in

Transmission

Transmission specifications
Max Speed - Forward6.2 mph
Max Speed - Reverse7.5 mph
Transmission TypePower Shift
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge71 in
Number of Track Rollers per Side7
Number of Shoes per Side41
Standard Shoe Size22 in
Ground Contact Area4,146 in³

Standard Blade

Standard Blade specifications
Width121 in
Height44 in
Capacity3.40 yd³
