Caterpillar

D5N

Crawler Dozer

Operating Weight
28,082 lb
Max Speed - Forward
6.2 mph
Net Power
121.0 hp
All crawler dozers

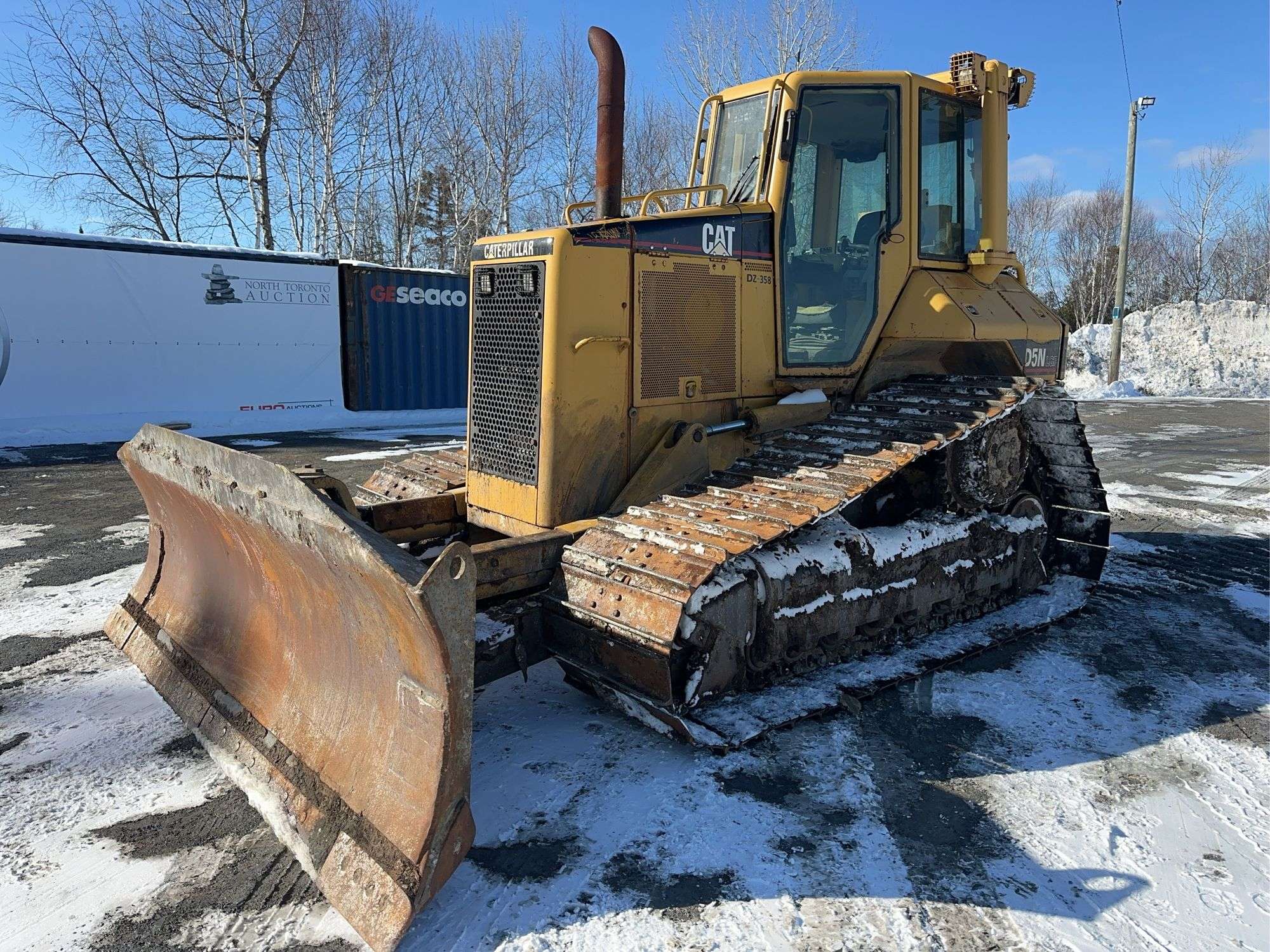

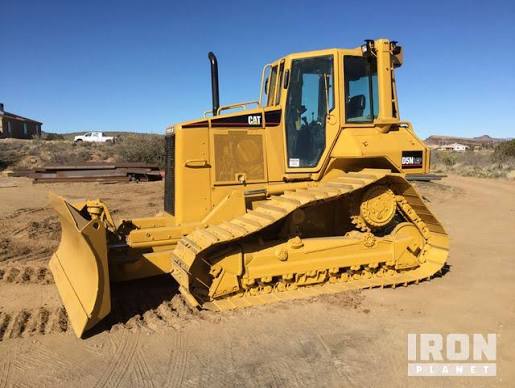

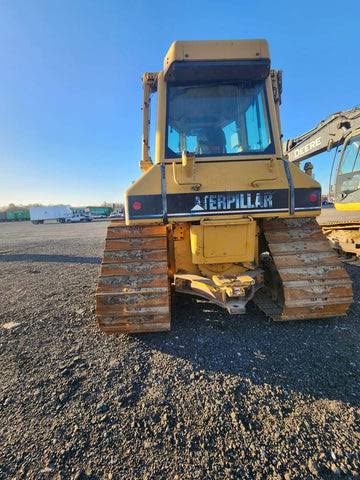

Caterpillar D5N Crawler Dozer
1 / 5
Image 1 of 5
Image: jardineauctioneers.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight28,082 lb
Fuel Capacity67.9 gal
Cooling System Fluid Capacity9.8 gal
Final Drives Fluid Capacity1.6 gal
Hydraulic Fluid Capacity7.8 gal
Operating Voltage12 V
Alternator Supplied Amperage70 A

Engine

Engine specifications
Engine Model3126B DITAAC
Displacement439 in³
Power Measured @2,000 rpm
Net Power121.0 hp

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab119 in
Length of Track on Ground95 in
Width Over Tracks93 in
Length w/ Blade141 in

Transmission

Transmission specifications
Max Speed - Forward6.2 mph
Max Speed - Reverse6.9 mph
Transmission Typepowershift
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge71 in
Number of Track Rollers per Side7
Number of Shoes per Side41
Standard Shoe Size22 in
Ground Contact Area4,139 in³

Standard Blade

Standard Blade specifications
Width121 in
Height44 in
Capacity3.51 yd³
