Caterpillar

D5N XL

Crawler Dozer

Operating Weight
28,258 lb
Max Speed - Forward
5.6 mph
Gross Power
115.0 hp
All crawler dozers

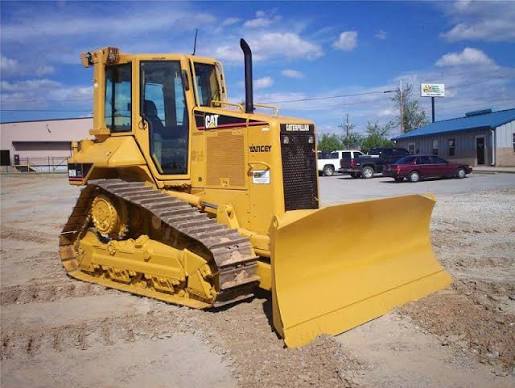

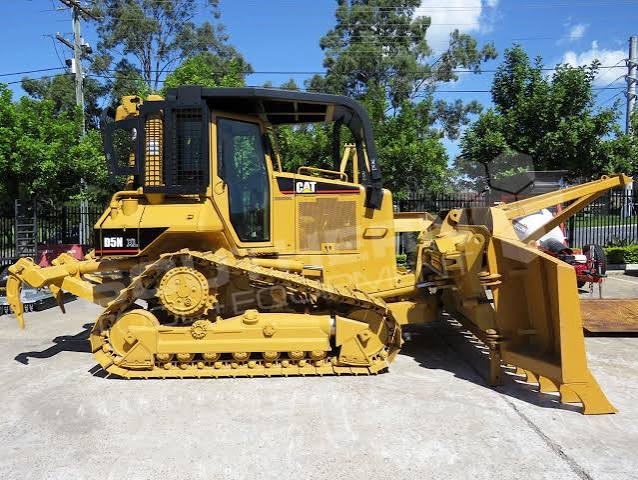

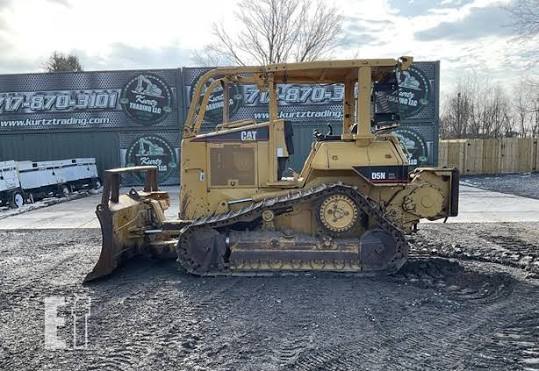

Caterpillar D5N XL Crawler Dozer
1 / 5
Image 1 of 5
Image: surplusrecord.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight28,258 lb
Fuel Capacity67.9 gal

Engine

Engine specifications
Engine Model3126BT
Displacement439 in³
Power Measured @2,100 rpm
Gross Power115.0 hp
Number of Cylinders6

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab119 in
Length of Track on Ground95 in
Width Over Tracks93 in
Length w/ Blade180 in
Length w/o Blade141 in

Transmission

Transmission specifications
Max Speed - Forward5.6 mph
Max Speed - Reverse6.9 mph
Transmission TypePower shift
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge71 in
Number of Track Rollers per Side7
Standard Shoe Size22 in
Ground Contact Area4,144 in³

Standard Blade

Standard Blade specifications
Width122 in
Height44 in
Capacity3.40 yd³
