Caterpillar

D6D LGP

Crawler Dozer

Operating Weight
38,301 lb
Max Speed - Forward
6.8 mph
Gross Power
140.0 hp
All crawler dozers

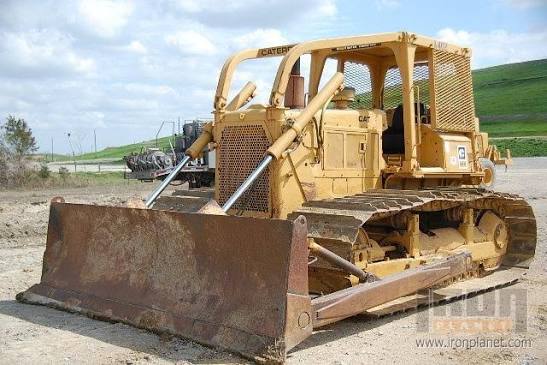

Caterpillar D6D LGP Crawler Dozer
1 / 5
Image 1 of 5
Image: m.made-in-china.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight38,301 lb
Fuel Capacity78.0 gal

Engine

Engine specifications
Engine Model3306
Displacement641 in³
Gross Power140.0 hp

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab115 in
Length of Track on Ground114 in
Width Over Tracks120 in
Length w/ Blade204 in
Length w/o Blade156 in

Transmission

Transmission specifications
Max Speed - Forward6.8 mph
Max Speed - Reverse8.1 mph
Transmission Typepowershift
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge84 in
Number of Track Rollers per Side7
Standard Shoe Size36 in
Ground Contact Area8,138 in³

Standard Blade

Standard Blade specifications
Width146 in
Capacity4.09 yd³
