Caterpillar

D6H LGP

Crawler Dozer

Operating Weight
43,354 lb
Max Speed - Forward
7.1 mph
Gross Power
179.0 hp
Net Power
165.0 hp
All crawler dozers

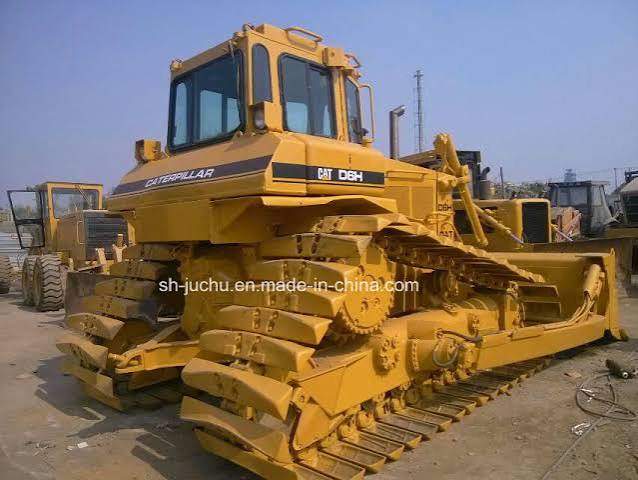

Caterpillar D6H LGP Crawler Dozer
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight43,354 lb
Fuel Capacity85.1 gal
Cooling System Fluid Capacity10.1 gal
Final Drives Fluid Capacity3.5 gal
Engine Oil Capacity7.3 gal
Operating Voltage24 V
Alternator Supplied Amperage35 A

Engine

Engine specifications
Engine Model3306
Displacement641 in³
Power Measured @1,800 rpm
Gross Power179.0 hp
Net Power165.0 hp
Number of Cylinders6
Aspirationturbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity19.3 gal/min
Relief Valve Pressure2,875 psi
Pump TypeGear pump

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab124 in
Length of Track on Ground130 in
Width Over Tracks125 in
Length w/ Blade204 in
Length w/o Blade178 in

Transmission

Transmission specifications
Max Speed - Forward7.1 mph
Max Speed - Reverse9.0 mph
Transmission TypePlanetary powershift
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge88 in
Number of Track Rollers per Side8
Number of Shoes per Side45
Standard Shoe Size36 in
Ground Contact Area9,252 in³

Standard Blade

Standard Blade specifications
Width157 in
Height43 in
Capacity4.90 yd³

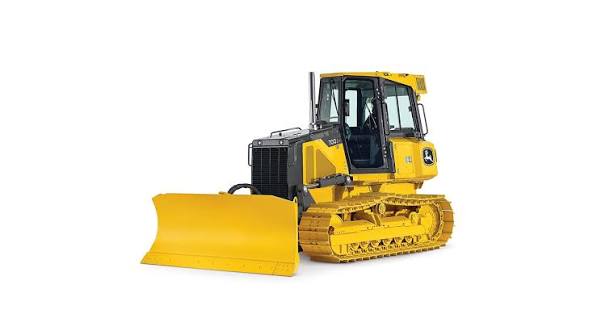

Comparable machines
