Caterpillar

D6K XL

Crawler Dozer

Operating Weight
28,409 lb
Max Speed - Forward
6.3 mph
Net Power
125.0 hp
All crawler dozers

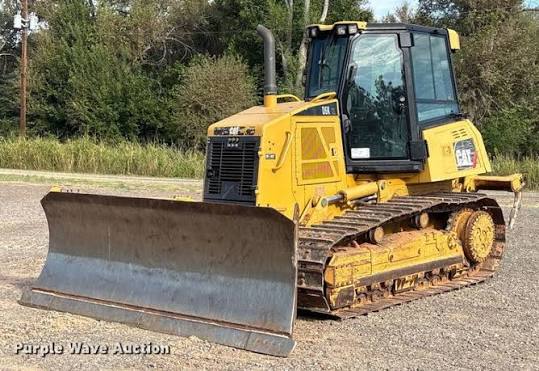

Caterpillar D6K XL Crawler Dozer
1 / 5
Image 1 of 5
Image: ohiocateq.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight28,409 lb
Fuel Capacity77.9 gal
Cooling System Fluid Capacity6.4 gal
Final Drives Fluid Capacity4.0 gal
Engine Oil Capacity4.4 gal
Hydraulic Fluid Capacity15.3 gal
Operating Voltage24 V
Alternator Supplied Amperage95 A

Engine

Engine specifications
Engine ModelC6.6 ACERT
Displacement403 in³
Power Measured @2,100 rpm
Net Power125.0 hp
Number of Cylinders6
MakeCat

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab117 in
Length of Track on Ground104 in
Width Over Tracks93 in
Length w/ Blade197 in
Length w/o Blade150 in

Transmission

Transmission specifications
Max Speed - Forward6.3 mph
Max Speed - Reverse6.3 mph
Transmission TypeHydrostatic

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge71 in
Number of Track Rollers per Side7
Number of Shoes per Side40
Standard Shoe Size22 in
Ground Contact Area4,650 in³

Standard Blade

Standard Blade specifications
Width120 in
Height45 in
Capacity3.51 yd³
