Caterpillar

D6R WH

Crawler Dozer

Operating Weight
45,415 lb
Gross Power
165.0 hp
All crawler dozers

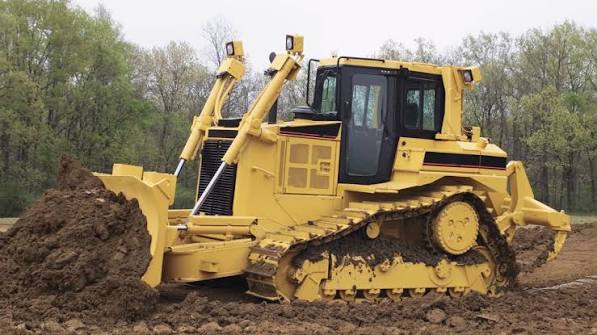

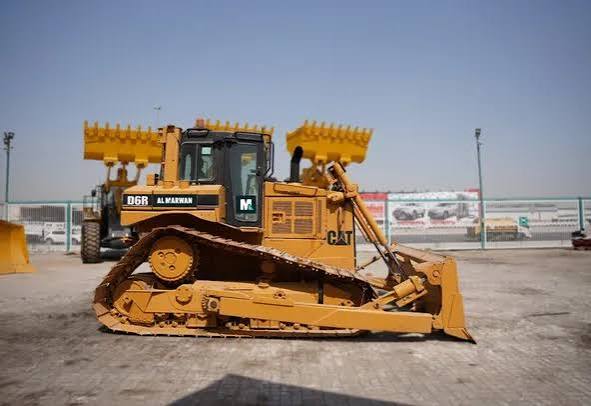

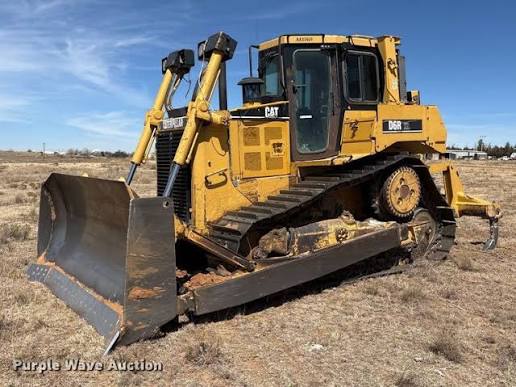

Caterpillar D6R WH Crawler Dozer
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

17 data points

Operating Specifications

Operating Specifications specifications
Operating Weight45,415 lb
Fuel Capacity102.5 gal

Engine

Engine specifications
Engine Model3306
Displacement641 in³
Gross Power165.0 hp

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab124 in
Length of Track on Ground103 in
Width Over Tracks104 in
Length w/ Blade202 in

Undercarriage

Undercarriage specifications
Track Gauge74 in
Number of Track Rollers per Side6
Standard Shoe Size22 in
Ground Contact Area4,557 in³

Standard Blade

Standard Blade specifications
Width132 in
Height735 in
Capacity11.30 yd³
